    Over Single CAT5e CAT6 4Kx2K HDMI TCP IP Extender

    Ask Lasest Price
    Brand Name : ZENHON
    Model Number : T-5200A
    Certification : CE,ROHS,REACH
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 300000 sets per month
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    Over Single CAT5e CAT6 4Kx2K HDMI TCP IP Extender

    Over Single CAT5e/6(200M) , 4Kx2K TCP/IP , HDMI Extender


    Introduction


    The HDMI Extender over single CAT5e/6 is a tool for extending your HDMI signal over long distances to a compatible display. Instead of using expensive HDMI cables, your existing CAT 5e/6 cables/sockets can be utilized to perform advanced functions like transferring Deep Color (12 bits/color) video and digital audio, with a bandwidth up to 340MHz. The HDMI Transmitter and Receiver, over ONE CAT5e/6 extender is your substantial HDMI extender tool. The HDMI Extender also support IR re-transmitting, so you can control the Source which is 200 meters outside using the HDMI extender.


    Specification


    Length of CAT-6 cable between Transmitter and ReceiverUp to 200 meters
    HDMI Input4Kx2K@30Hz/1080p/1080i/720p/576p/576i/480p/480i
    Support audio format inputDTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby*AC3/DSD
    HDMI Output24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
    Support audio format outputLPCM7.1/DTS/Dolby-AC3/DSD
    Max bandwidth340MHz
    Max baud rate10.2Gbps
    Input Video signal0.5~1.5Volts p-p
    Output DDC signal5Volts p*p (TT1L)
    Input/Output HDMI cable distance≤20m AWG26 HDMI standard cable
    Max working current800mA
    Power adapter formatInput:AC (50HZ, 60HZ) 100V*240V; Output: DC5V/1A
    Operating Temperature range(-15 to +55℃)
    Operating Humidity range5 to 90%RH (No Condensation)

    Features


    1.Signal transmission :CAT5e or CAT6(recommended) cables up to 200 meters instead of HDMI cables are connected between TX and RX Extender.


    2.Support HDMI1.4,HDCP1.4 protocol compliant.


    3.Support input/Output Resolution :

    4Kx2K@30Hz/1080p/1080i/720p/576p/576i/480p/480i;


    4.Support CEC.


    5.Support 20~60KHz IR working.


    6.protocol compliant TCP/IP one transmitter and multiple receivers,

    with a maximum of 253 receivers.


    7.Audio format support :

    DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD.


    8.No loss of quality.


    9.Installs in minutes.


    10.Need DC 12V/1A power supply.



    Panel Descriptions


    Please study the panel drawings below and become familiar with the signal

    input(S),output(S)and power requirements.



    Power --------------------------------------Power Indicator

    STA --------------------------------------Working Indicator

    Reset ------------------------------------------Reset button

    HDMI Input -------------------------------HDMI Input port

    HDMI Output ------------------------------HDMI Loopout

    Fiber Out --------------------------------------Fiber output

    IR-TX -----------------------------------------IR transmitter

    DC/12V -----------------------------------Power Input port

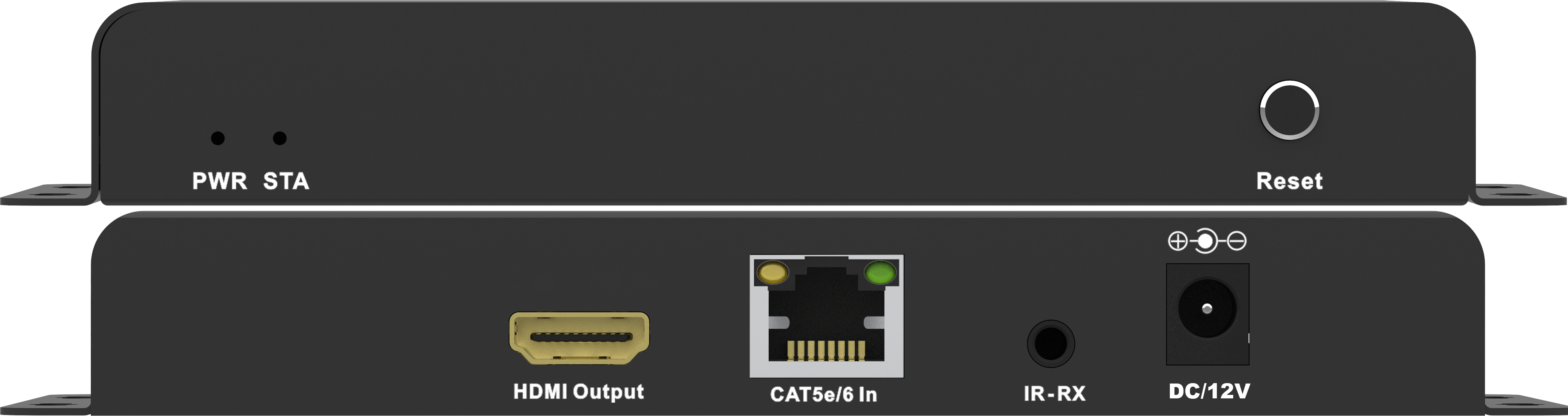

    Power --------------------------------------Power Indicator

    STA --------------------------------------Working Indicator

    Reset ------------------------------------------Reset button

    HDMI Output ------------------------------HDMI Loopout


    IR-RX --------------------------------------------IR receiver

    Fiber Input --------------------------------------Fiber Input

    DC/12V -----------------------------------Power Input port


    CONNECT AND OPERATE


    Before installation, please make sure all devices you wish to connect have been turned off.




    6.01.Connect HDMI signal source to the transmitter of HDMI extender.


    6.02.Use fiber cable(Recommend:SC) to connect transmitter and receiver

    of HDMI Extender.


    6.03.Connect the display equipment with HDMI connector to the receiver of

    HDMI extender.


    6.04.Power on all connected devices, Choose the input of the display device

    to its HDMI channel.
