HDMI H.264 , Wireless , 3D Full HD 1080P , Extender

Introduction

HDMI extender with a standard Ethernet TCP/IP protocol, through wireless WIFI signal transmission HD audio and video signal, at the same time, with infrared extensions to make remote control more convenient.The equipment has excellent image processing and transmission capacity, makes signal transmission more smooth and steady, is a kind of economic and efficient way of HDMI signal extension.

Technical parameters

Features

1. HDMI video and audio transmission via wireless WIFI, up to 100 meters;

2. HDMI 1.3 compatible;

3. In accordance with standard HDCP1.2 ,high-bandwidth digital content

protection technology;

4. HD video signal resolution up to 1920x1080@60Hz;

5. Support transmitter with HDMI Loopout;

6. Special format is to compress and decompress video,effectively improve

the transfer efficiency,to ensure that the playback fluency;

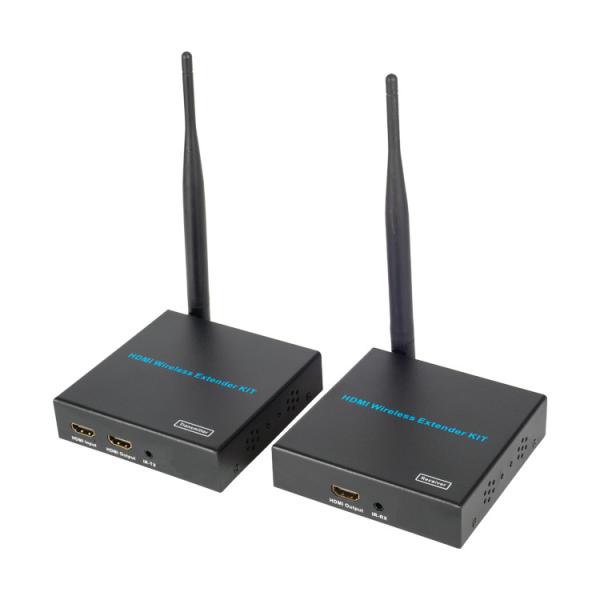

Transmitter Panel

DC/5V ---------------------------DC Power input port

Power -------------------------------------Power status

Status -----------------------------HDMI signal status

Reset --------------------------------------Reset button

HDMI Input ---------------------------HDMI input port

HDMI Output --------------------HDMI Loopout port

IR-TX -------------------------------------IR transmitter

Receiver Panel

DC/5V ---------------------------DC Power input port

Power -------------------------------------Power status

Status -----------------------------HDMI signal status

Reset --------------------------------------Reset button

HDMI Output ----------------------HDMI output port

IR-RX ----------------------------------------IR receiver

Connection diagram

ONE TO ONE

ONE TO N (Max 4 PCS)

1. The HDMI source access HDMI extender sender;

2. Connect the HDMI extender the receiver to a display device (such as

high-definition TV, splicing screen, etc.);

3. Configure infrared to control function: send infrared line link extender

transmitter, the receiver of the infrared receiving line access extender,

And aim the infrared emission head needs to control device of the

infrared receiver mouth;

4. Confirm the transmitter and the receiver is placed within the effective

distance Steer clear of obstructions;

5. To the sender and the receiver connected to the power, when the light is

normal lights up, normal operation of system.
