    3G 1920x1080 3Gbps 4 X 1 SDI Signal Switcher

    Ask Lasest Price
    Brand Name : ZENHON
    Model Number : SDI-304
    Certification : CE,ROHS,REACH
    Payment Terms : L/C, T/T
    Supply Ability : 300000SETS,PER MONTH
    Delivery Time : 20-30DAYS
    Price : Negotiable
    • Product Details
    • Company Profile

    3G 1920x1080 3Gbps 4 X 1 SDI Signal Switcher

    SD/HD/3G, SDI 4 x 1,SDI Signal Switcher


    1.0 Specifications


    Weight350g
    SDI Switcher Input Ports4 x BNC Female input ports
    SDI Switcher Output Port1 x BNC Female output port
    Dimensions (mm)150 (L) X 65(W) X 25 (H)
    ESD Protection Human Body Model± 8kV (air-gap discharge)± 4kV (contact discharge)
    Power SupplyDC 5V 1A
    Frequency Bandwidth3Gbps
    Operating Temperature0°C ~ 40°C / 32°F ~ 104°F
    Storage Temperature20°C ~ 60°C / -4°F ~ 140°F
    Relative Humidity20 ~ 90% RH (Non-condensing)
    Power Consumption (Max)3.5W

    2.0 Features


    1. Supports 4 SDI input signal switch to 1 HD SDI monitor.

    2. Supports SD-SDI(270Mb/s), HD-SDI(1.485Gb/s), 3G-SDI(2.97Gb/s) video format.


    3. Built-in cable equilibrium, clock recovery and drive.


    4. Supports resolutions up to 1920x1080@60Hz.


    5. Supports signal input and output distances of up to 300m for SD signals, 200m for HD signals and 100m for 3G signals.


    6. Supports 5-12V wide voltage input.


    3.0 Package


    Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:


    1. 4x1 SDI Switcher --------------------------------------------- 1PCS


    2. 5V 1A DC Power Supply adapter ------------------------ 1PCS


    3. Operation Manual -------------------------------------------- 1PCS


    4.0 Operation controls and Functions


    Please study the panel drawings below and become familiar with the signal input(s), output(s) and power requirements.

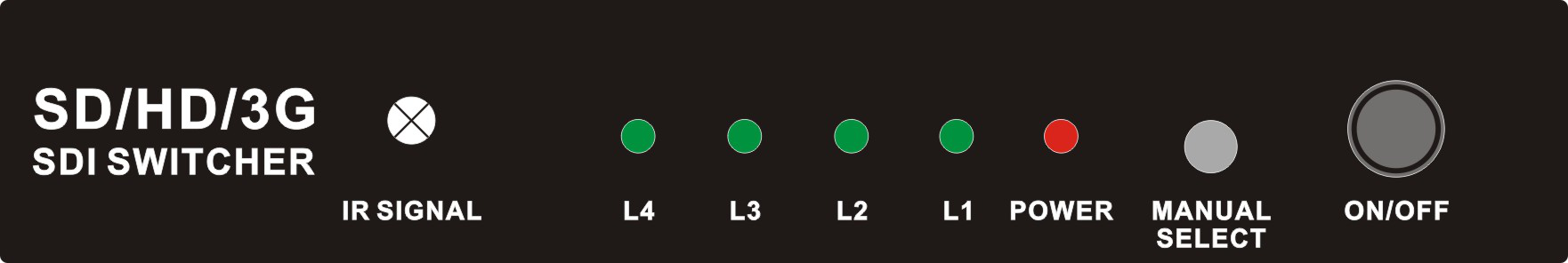

    Front Panel


    1. IR SIGNAL------------------------------IR Signal Receiver


    2. L4------------------------------------------- Input 4 Indication


    3. L3------------------------------------------- Input 3 Indication


    4. L2--------------------------------------------Input 2 Indication


    5. L1------------------------------------------- Input 1 Indication


    6. POWER-----------------------------Power input Indication


    7. MANUAL SELECT--------- Input Signal Switch Button


    8. ON/OFF----------------------------------------Power Switch


    Rear Panel


    9. DC 5V-12V-------------------------Power input Interface


    10. SDI OUTPUT-----------------------SDI Output Interface


    11. SDI INPUT1-4-------------------SDI Input 1-4 Interface


    5.0 Application Example



    1. Connect the Coaxial(RG6U) Cable between SDI signal source and SDI

    INPUT of SDI Switcher.


    2. Connect the Coaxial Cable between SDI Switcher and SDI display.


    3. Connect the power adapter between SDI Switcher and outlet.


    4. Open the power supply of SDI signal source and the display. Choose

    corresponding input ports, then it works.


    5. You can select the required signal source via a button or remote control.
