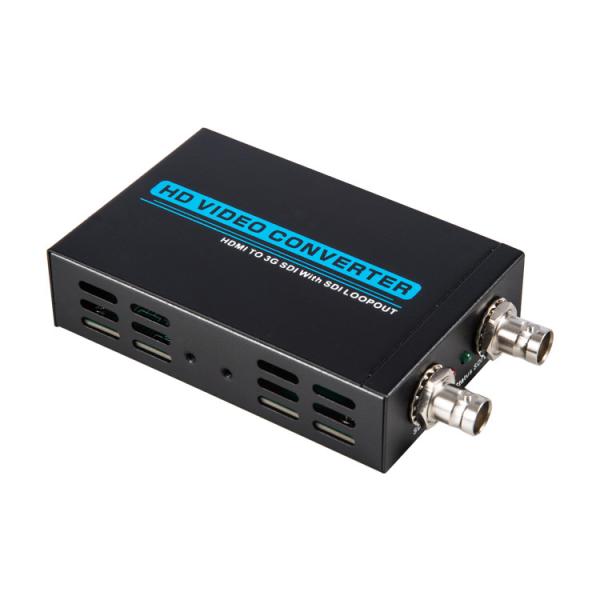

HDMI TO SD/HD/3G, SDI With SDI Loop out, AV Signal Converter

1.0 Specifications

2.0 Features

1. Support HDMI1.3 HDCP1.1/1.2

2. Shows HDMI source on SDI display.SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s,

1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s.

3. Supports HDMI input timings: 480i@59.94, 576i, 720p@50/59.94/60,1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60.

4. Converts HDMI signal to SDI:

480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)

720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or1.485/1.001 Gbit/s)

1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s

and 2.970/1.001 Gbit/s)

5. Supports SDI output distance up to 100 meters (3G-SDI), 200 meters

(HD-SDI), or 300 meters (SD-SDI)

3.0 Packaging accessories:

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1. HDMI TO SDI CONVERTER------------------------------1Pcs

2. 5V DC Power Adaptor---------------------------------------1Pcs

3. User Manual---------------------------------------------------1Pcs

4.0 Panel introduction

Please study the panel drawings below and become familiar with the signal input(s), output(s) and power requirements.

1. DC 5V-----------------Power Input interface

2. HDMI INPUT --------HDMI Input interface

3. SDI OUT ------------SDI Output1 interface

4. PW ---------Power Input Status Indication

5. IN ------------HDMI Input Status Indication

6. SDI LOOP -----------SDI Output2 interface

5.0 Connection and operation

1. Connect the HDMI Cable between HDMI signal source and HDMI INPUT of converter.

2. Connect the Coaxial Cable between converter and SDI display.

3. Connect the power adapter between converter and outlet.

4. Open the power supply of HDMI signal source and the display. Choose corresponding input ports, then it works.
