HDMI TO YPbPr/VGA, + ,SPDIF , AV Signal Converter
2.0 SPECIFICATIONS
| Input Video signal | 0.5~1.5Volts p-p |
| Input DDC signal | 5Volts p-p (TTL) |
| VGA or YPbPr output | Up to UXGA and 1080I(60Hz) |
| Audio output | R/L Analog and optical |
| Max transmission bandwidth | 5.1Gbps |
| Max working current | 600mA |
| Weight | 380g |
| Operating Temperature range | (-15 to +55℃) |
| Operating Humidity range | 5 to 90%RH (No Condensation) |
| Dimension (L x W x H) | 178x65x27 (mm) |
| Power adapter format | DC5V/1A |
3.0 Features
1. One HDMI input signal convert to one YPbPr+SPDIF or VGA+SPDIF sink
device.
2. Support audio output: SPDIF(Optical)+ R/L analog .
3. Support output : Support up to UXGA and 1080I(50/60Hz),the same
format
as input.
4. LED indication: when source or sink is working, LED relative to is
light.
5. No loss of quality
6. Installs in minutes
7. Need DC5V/1A power supply
4.0 PACKAGE CONTENTS
Before attempting to use this unit please check the packing and
make sure the following items are contained in the shipping carton:
1. Main unit ------------------------------------ 1PCS
2. 5V DC Power Supply----------------------1PCS
3. User's Manual-------------------------------1PCS

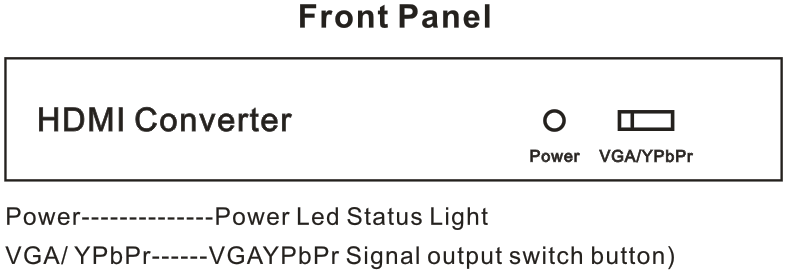

5.0 PANEL DESCRIPTIONS
Please study the panel drawings below and become familiar with the
signal
input(S),output(S)and power requirements.
6.0 Connection and Operation
1. Connect the HDMI Cable between HDMI signal source and HDMI INPUT
of
converter.
2. Connect the VGA Cable between converter and VGA display.
3. Connect the YPbPr Cable between converter and YPbPr display.
4. The R/L audio cable is connected to speakers.
5. The Toslink cable is connected to the digital speakers.
6. Connect the power adapter between converter and outlet. Open the
power
supply of HDMI signal source and the display. Choose corresponding
input
ports, then it works.
