3D Ultra HD, 4K x 2K@60Hz, HDMI to HDMI, + DP, AV Signal Converter
1.0 INTRODUCTION
The converter converts a set of HDMI 2.0 signals into a set of HDMI
signals and a set of Displayport signal sync outputs.
It offers solutions for noise, space and security concerns, data
center control, information distribution, conference room
presentation, school and corporate training environments.
2.0 SPECIFICATIONS:
| HDMI IN/Out sesolution | 480i/p,576i/p,720p,1080i/p,4Kx2K@60Hz |
| DP output | 480i/p,576i/p,720p,1080i/p,4Kx2K@60Hz |
| Support video color format | 24bit/36bit/48bit deep color |
| Max bandwidth | 600MHz |
| Max baud rate | 18Gbps |
| Input/Output TMDS signal | 0.5~1.5Volts p-p(TTL) |
| Input/Output DDC signal | 5Volts p-p (TTL) |
| Input cable distance | ≤10m 28AWG |
| Output cable distance | ≤10m 28AWG HDMI standard cable |
| Max working current | 500mA |
| Power adapter | Input: AC(50/60HZ) 100V-240V; Output: DC5V/1A |
| Operating Temperature range | (-15 to +55℃) |
| Operating Humidity range | 5 to 90%RH (No no Condensation) |
| Dimension (L x W x H) | 73X60.5X22.5 (mm) |
| Weight | 90g |
3.0 FEATURES
1. Plug and play, Installs in minutes;
2. Support the HDCP2.2 protocol, Support for HDMI2.0;
3. Support HDR 18Gbps YUV4:4:4;
4. One HDMI input converted to HDMI+Displayport output;
5. Displayport output support DP1.2;
6. HDMI Input resolution: up to 4Kx2K(60Hz);
7. HDMI/DP Output resolution: up to 4Kx2K(60Hz);
8. Support HDMI and Displayport signal synchronization
distribution.
4.0 PACKAGE CONTENTS
Before attempting to use this unit. please check the packing and
make sure the following items are contained in the shipping carton:
1. Main unit----------------------------------1Pcs
2. User's Manual---------------------------1Pcs
3. 5V DC Power Supply------------------1Pcs
5.0 PANEL DESCRIPTIONS
Please study the panel drawings below and become familiar with the
signal input(S),output(S)and power requirements.
1.
DC/5V---------------------------------------------------------------5V
Power Interface
2.
Power--------------------------------------------------------------------Power
indicator
3. HDMI
-------------------------------------------------------------------------HDMI
Input

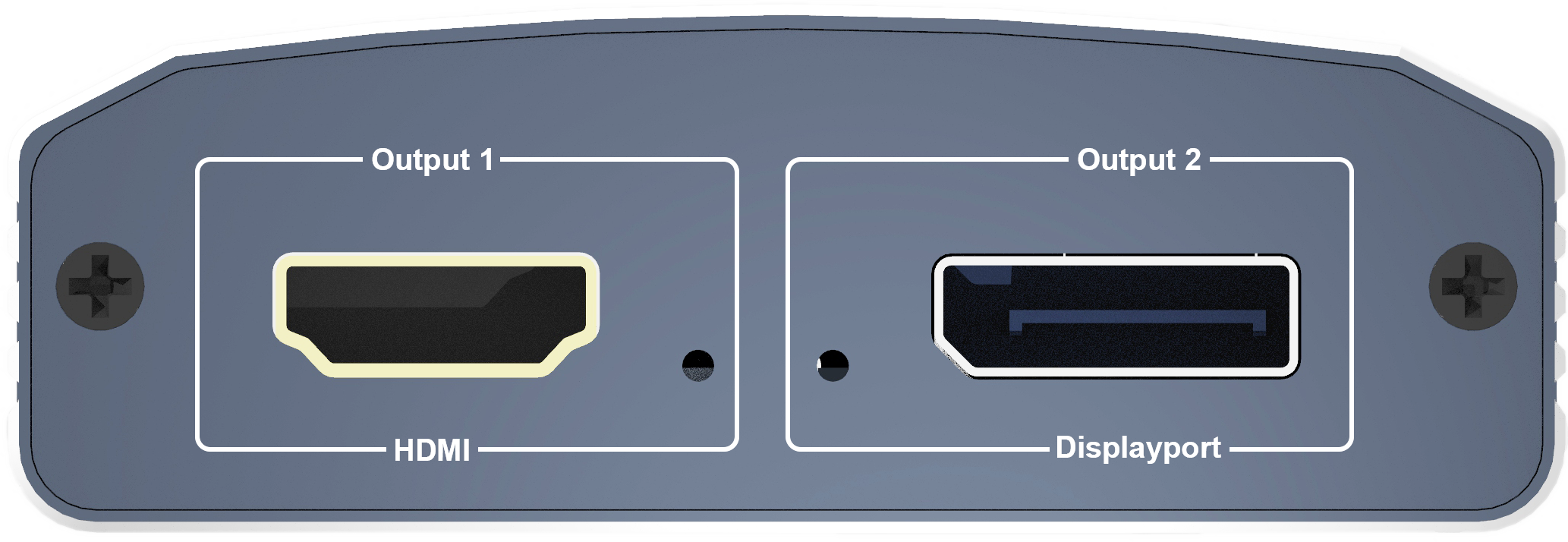

4. Output1
--------------------------------------------------------------------HDMI
Output
5. Output2
-------------------------------------------------------------Displayport
Output
6.0 Operating and Connecting:
Before installation, please make sure all devices you wish to
connect have been turned off.
1. To use one HDMI cable to connect the HD Source with the input
HDMI port.
2. To connect the converter HDMI output port with the HDMI Display.
3. To connect the converter Displayport output port with the DP
Display.
4. To connect the converter with 5V DC power adaptor.
5. Power on all connected devices, choose the input of the display
device to its HDMI/DP channel.
7.0 INSTALLATION AND PRECAUTIONS
To avoid electric shock , product damage and to protect your safety
, please notice the following:
1. Please slowly plug or unplug signal cables and do not often plug
, unplug , or shake them.
2. The equipment should not be placed under the sun , rain and damp
or unventilated environment.
3. Liquid items should not be placed on the equipment.
4. Do not install the equipment near heat sources such as fire ,
power , or other amplifiers that produce heat.
5. Do not insert the metal or other objects to the equipment in
addition to connecting cables to ports.
6. Do not demolish the equipment by yourself ; it should be
maintained by professional maintenance staff.
