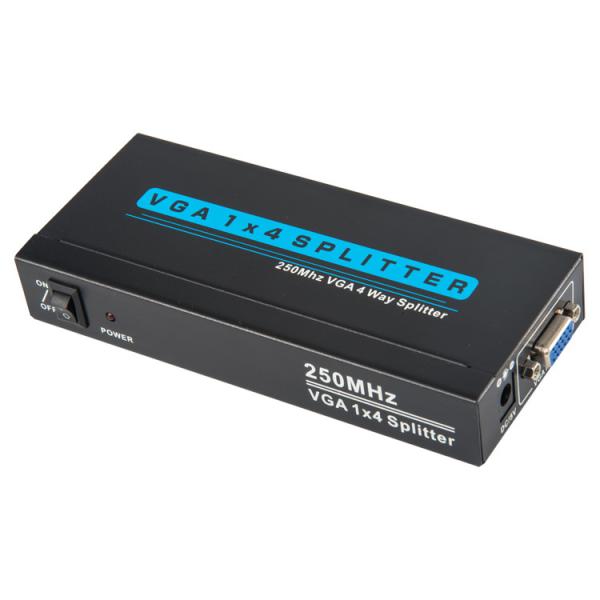

250MHz,VGA 1 x 4,VGA Signal Splitter

1.0 Technical parameters

2.0 Features:

1. VGA splitter come with attractive appearance,easy to install.

2. Led indicates signal and power mode.

3. Video resolution can reach 1920 x1440 @ 60 Hz and support the DDC, DDC2, DDC2B function.

4. Support DOS,WIN3.X,WIN95/98/98SE/2K/ME/XP/NT,Linux Netware,Unix and other operating systems.

5. Support plug and play ,can be free to change the quantity of display without shut down.

6. Extend the transmission distance and improve transmission signal.

7. Metal casing design and overall shielding without signal interference.

8. Do not need to plus additional hardware or software.

9. Power supply (please refer to technical parameter).

3.0 Packaging accessories:

1. VGA 1×4 Splitter---------------------------------------------------1 Pcs

2. 5V DC Power Adaptor--------------------------------------------1 Pcs

3. User Manual--------------------------------------------------------1 Pcs

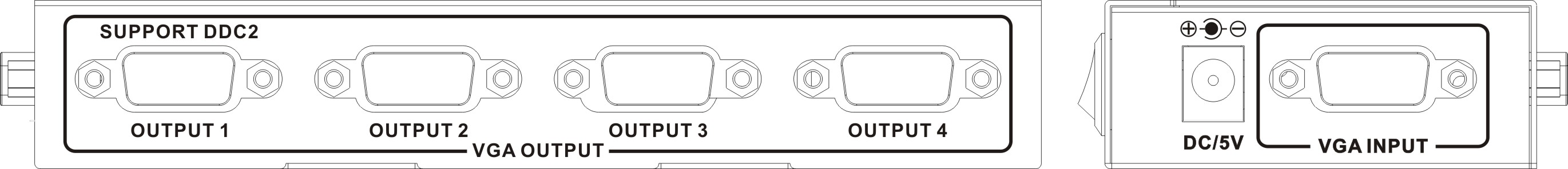

4.0 Panel Introduction

1. ON/OFF-----------------------------------------------Power switch

2. Power---------------------------------------------Power Instruction

3. Output1-4 ------------------------------------------VGA Output1-4

4. DC/5V----------------------------------------DC Power Input Port

5. VGA INPUT-----------------------------------------VGA Input port

5.0 Connection diagram

1. Connect the VGA cable between signal source and input port of Splitter.

2. Connect the VGA cable between output port of Splitter and HDTV.

3. Connect splitter and power adapter.

4. Open the signal source and the power of HDTV, then it works.

Explanation: With different brands of the input or output device, the length of the

connecting cables will differ too.

6.0 Installation and Precautions

To avoid electric shock , product damage and to protect your safety , please notice the following:

1. Please slowly plug or unplug signal cables and do not often plug , unplug , or shake them.

2. The equipment should not be placed under the sun , rain and damp or unventilated environment.

3. Liquid items should not be placed on the equipment.

4. Do not install the equipment near heat sources such as fire , power , or other amplifiers that produce heat.

5. Do not insert the metal or other objects to the equipment in addition to connecting cables to ports.

6. Do not demolish the equipment by yourself ; it should be maintained by professional maintenance staff.
