MINI HDMI TO AV, portable, AV Signal Converter

1.0 SPECIFICATIONS

3.0 FEATURES

1. No need to install drivers, portable, flexible, plug and play;

2. Low power, No power adaptor;

3. Support NTSC and PAL two standard TV formats output;

4. Compatible HDMI1.3.

4.0 PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1. Main unit (HDMI to AV Converter)--------------1PCS

2. USB Cable or 5V 1A Power adapter------------1PCS

3. User Manual-------------------------------------------1PCS

5.0 PANEL DESCRIPTIONS

Please study the panel drawings below and become familiar with the signal input(s), output(s) and power requirements.

1. HDMI -----------------------HDMI signal input

2. CVBS -----------------------------CVBS output

3. L/R ---------------------------------Audio output

4. USB POWER --------------USB power input

5. PAL/NTSC -----------------PAL/NTSC switch

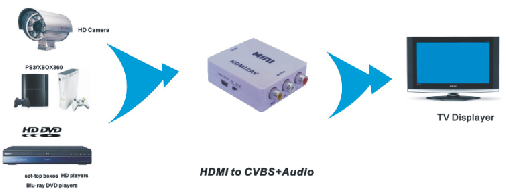

6.0 CONNECTION DIAGRAM
