AV + S, - Video to HDMI, AV Signal Converter

1.0 Introduction

CVBS/S-video to HDMI signal converter which will convert S-video/CVBS video signal and R/L audio signal to HDMI signal. It offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

2.0 Specifications

3.0 Features

1. No need to install drivers, portable, flexible, plug and play;

2. Provide advanced signal processing with great precision,colors, resolutions, and details;

3. Support PAL, NTSC3.58, NTSC4.43, SECAM,PAL/M, PAL/N standard TV formats input;

4.Support Up Scaler;

5. Support HDMI 1080p or 720p output.

4.0 Package contents

Before attempting to use this unit please check the packing and make sure the following items are contained in the shipping carton:

1. AV/S-video to HDMI Converter---------------------------------1Pcs

2. 5V DC Power Supply----------------------------------------------1Pcs

3. User Manual---------------------------------------------------------1Pcs

5.0 PANEL DESCRIPTIONS

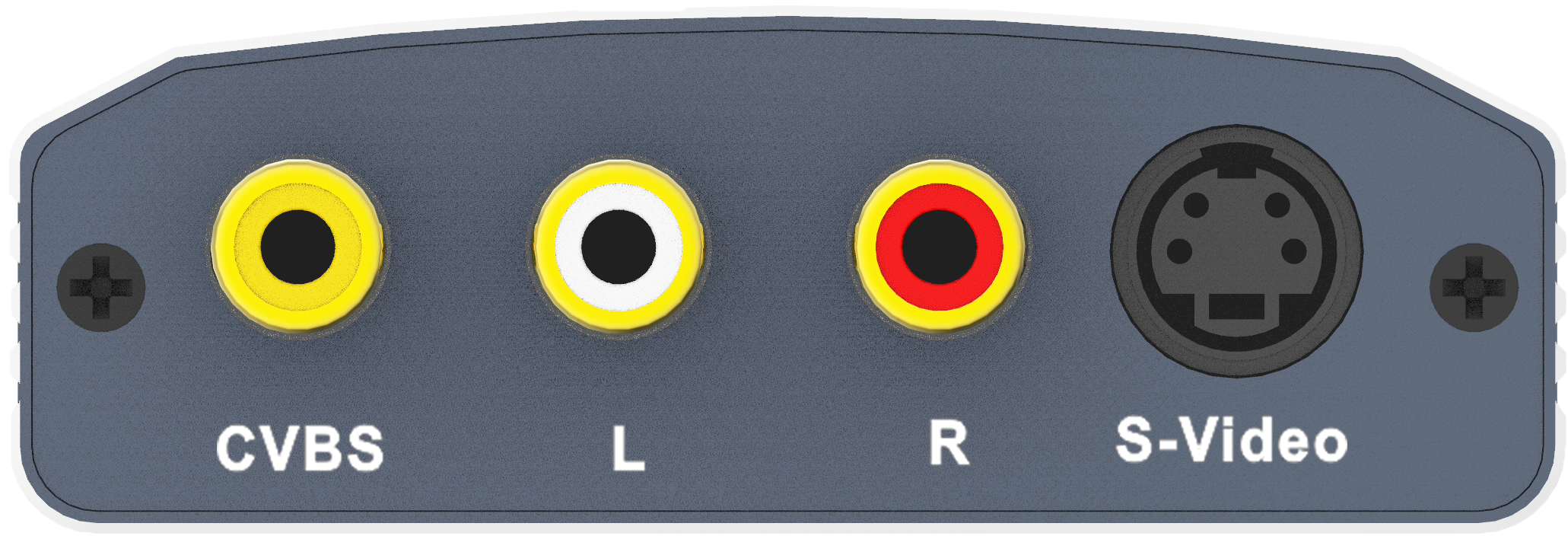

Please study the panel drawings below and become familiar with the signal input(S),output(S)and power requirements.

1. CVBS--------------------------------------------------------CVBS Input

2. L/R------------------------------------------------------------Audio Input

3. Video---------------------------------------------------S-Video Input

4. DC/5V-------------------------------------------------------DC 5V Input

5. PWR-----------------------------------------------------Power indicator

6. HDMI-------------------------------------------------------HDMI Output

7. 720P/1080P-------------------720P and 1080P resolution switch

8. A/V/S-Video ----------------------------A/V or S-video Input switch

6.0 APPLICATION AREAS

A. Civil Industry: set-top boxes, XBOX360, PS3, high-definition players.

B. Industrial sector: high-definition camera, video camera, with this common display device will instead of big screen HDMI television monitors, to reduce the cost and space.

7.0 CONNECT AND OPERATE

Before installation, please make sure all devices you wish to connect have been turned off.

1. Connect the AV Cable between AV signal source and AV INPUT of converter.

2. Connect the S-Video Cable between S-video signal source and S-video INPUT of converter.

3. Connect the HDMI Cable between converter and HDMI display.

4. Connect the power adapter between converter and outlet. Open the power supply of HDMI signal source and the display. Choose

corresponding input ports, then it works.

8.0 INSTALLATION AND PRECAUTIONS

To avoid electric shock , product damage and to protect your safety , please notice the following:

1. Please slowly plug or unplug signal cables and do not often plug , unplug , or shake them.

2. The equipment should not be placed under the sun , rain and damp or unventilated environment.

3. Liquid items should not be placed on the equipment.

4. Do not install the equipment near heat sources such as fire , power , or other amplifiers that produce heat.

5. Do not insert the metal or other objects to the equipment in addition to connecting cables to ports.

6. Do not demolish the equipment by yourself ; it should be maintained by professional maintenance staff.
