MINI CVBS TO HDMI ,flexible, AV Signal Converter

1.0 SPECIFICATIONS

2.0 FEATURES

1. No need to install drivers, portable, flexible, plug and play;

2. Provide advanced signal processing with great precision,

colors, resolutions, and details;

3. Support PAL, NTSC3.58, NTSC4.43, SECAM,PAL/M, PAL/N

standard TV formats input;

4. Support HDMI 1080p or 720p output.

3.0 PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1. Main unit (AV TO HDMI Converter)-------------1PCS

2. USB Cable---------------------------------------------1PCS

3. User Manual-------------------------------------------1PCS

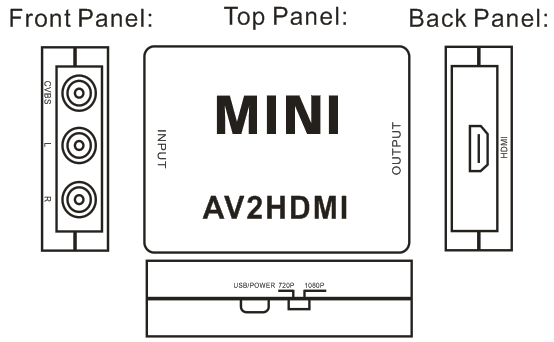

4.0 PANEL DESCRIPTIONS

Please study the panel drawings below and become familiar with the signal input(s), output(s) and power requirements.

1. CVBS ---------------------------CVBS input

2. L/R -------------------------------Audio input

3. USB POWER ----------USB power input

4. 720P/1080P ---------720P/1080P switch

5. HDMI ---------------------------HDMI output

5.0 CONNECTION DIAGRAM
