1.0 INTRODUCTION
The HDMI KVM Extender use single cat-5e or cat-6(recommended)
cables up to 60 meters instead of HDMI cable to transmit high
definition signal, for cutting down cost.
2.0 SPECIFICATIONS
| HDMI Version | HDMI2.0 |
| Transmitter Input Ports | HDMIx1(AF),USB(BF)x1 |
| Transmitter Output Ports | HDMIx1(AF),CAT5e/6x1,IR TXx1 |
| Receiver Input Ports | CAT5e/6x1,IR RXx1 |
| Receiver Output Ports | HDMIx1(AF),USB(AF)x2 |
| Frequency Bandwidth | 18Gbps |
| Input/Output Resolutions | 480i/p,576p,720p,1080i/p,4Kx2K@60Hz |
| Audio | Sample rate:32kHz,44.1kHz,48kHz,96KHz |
| IR remote control | 20~60KHz;NEC |
| ESD Protection Human Body Model | ± 8kV (air-gap discharge)± 4kV (contact discharge) |
| Operating Temperature | 0˚C ~ 40˚C / 32˚F ~ 104˚F |
| Storage Temperature | 20˚C ~ 60˚C / -4˚F ~ 140˚F |
| Relative Humidity | 20~90% RH (non-condensing) |
| Dimensions (mm) | 170x81.5x22 |
3.0 FEATURES
1. Signal transmission :CAT5e/6(recommended) cables up to 60 meters
instead of HDMI cables are connected between TX and RX Extender.
2. Support HDMI2.0,HDCP2.2,HDR,18Gbps.
3. Support Input/Output resolution:
480i/p,576i/p,720p,1080i/p,4Kx2K@60Hz.
4. Support TX of Extender with HDMI Loopout.
5. Support video format up to 4Kx2K@60Hz with 24bit RGB/YcbCR
4:4:4/YCBCR4:4:4,and up to 4Kx2K@60Hz with 12bit YCBCR 4:4:4.
6. Audio format support:
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD.
7. Support long distance controlled by keyboard and mouse.
8. Support IR remote control 20~60KHz,NEC.
9. Support Transmitter and Receiver Audio Extract.
10. Extend the transmission distance and improve transmission
signal.
4.0 PACKAGE CONTENTS
When first unpacking your extender please check to see if the
following items are included:
1. HDMI Extender Transmitter
------------------------------------------------ 1PCS
2. HDMI Extender Receiver
--------------------------------------------------- 1PCS
3. IR Transmitter
------------------------------------------------------------------
1PCS
4. IR Receiver
---------------------------------------------------------------------
1PCS
5. 5V DC Power Supply adapter
--------------------------------------------- 2PCS
6. USB Data
Cable----------------------------------------------------------------1PCS
7. Operation Manual
------------------------------------------------------------ 1PCS
5.0 PANEL DESCRIPTIONS
HDMI KVM Extender Transmitter
1. Power ----------------------------------DC Power Input Status
2. USB Input ----------------------------------------USB Input port
3. DC/5V--------------------------------------DC Power input port
4. HDMI Loopout ----------------------------- HDMI Output port
5. HDMI IINPUT ------------------------------ HDMI Source port
6. IR TX ----------------------------------------------------IR TX
port
7. Audio Out -------------------------------------Audio output port
8. CAT5e/6 Out -----------------------------Cat5e/6 Output port

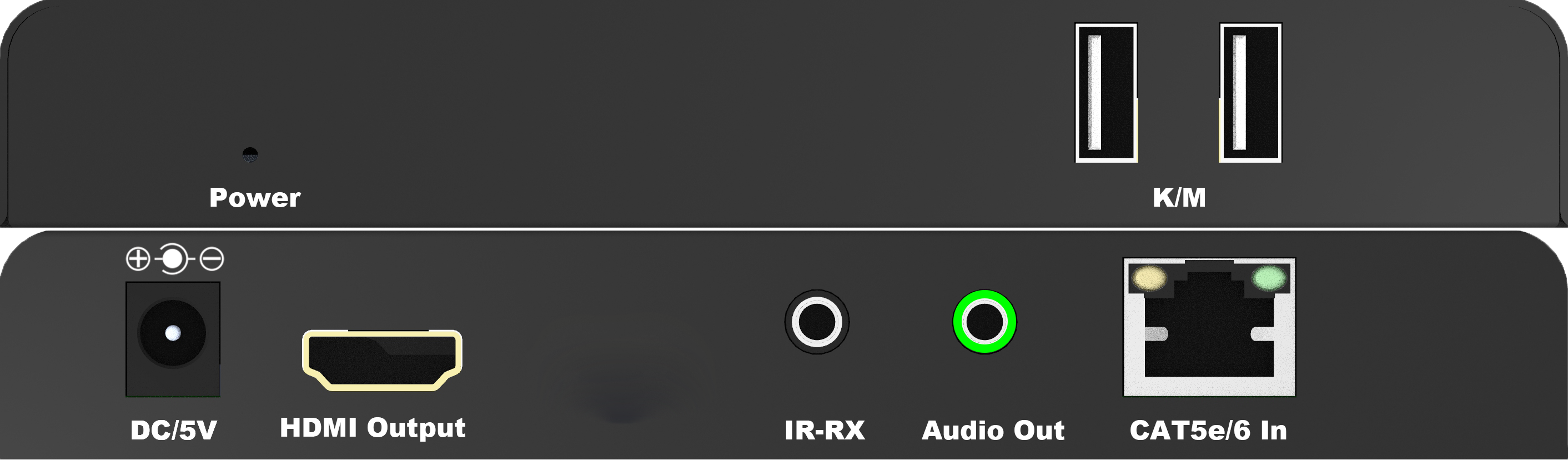

HDMI KVM Extender Receiver
1. Power -----------------------------------DC Power Input Status
2. K/M ----------------------------------------Keyboard and Mouse
3. DC/5V---------------------------------------DC Power input port
4. HDMI Output ---------------------------------HDMI Output port
5. IR RX ----------------------------------------------------IR RX
port
6. Audio Out --------------------------------------Audio output
port
7. CAT5e/6 In -----------------------------------Cat5e/6 Input port
6.0 CONNECTION AND OPERATION
Before installation, please make sure all devices you wish to
connect have been turned off.

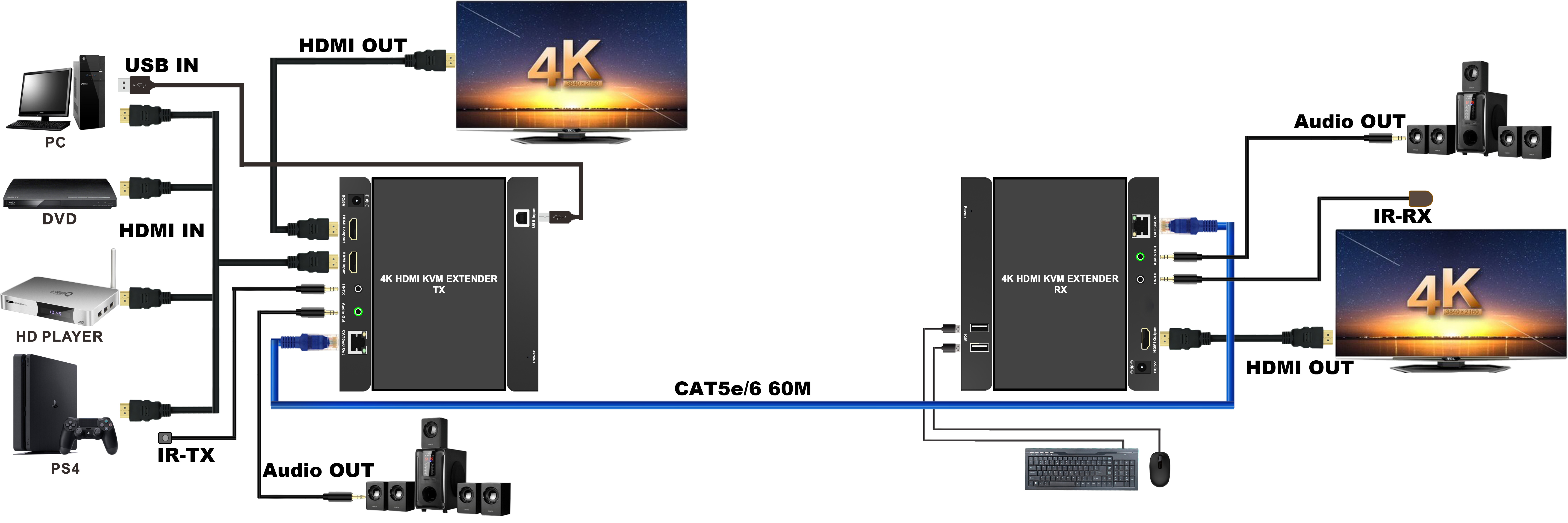

1. Connect HDMI signal source to the transmitter of HDMI KVM
extender;
2. Connect USB signal source to the transmitter of HDMI KVM
extender;
3. Use LAN cable(Recommend:CAT5e/6) to connect transmitter and
receiver of HDMI KVM Extender;
4. Connect the display equipment with HDMI connector to the
receiver of
HDMI KVM extender;
5. Connect keyboard and mouse to the receiver of HDMI KVM extender;
6. Turn on the power of all devices and the product starts to work.
7.0 INSTALLATION AND PRECAUTIONS
To avoid electric shock , product damage and to protect your safety
, please notice the following:
1. Please slowly plug or unplug signal cables and do not often plug
, unplug , or shake them.
2. The equipment should not be placed under the sun , rain and damp
or unventilated environment.
3. Liquid items should not be placed on the equipment.
4. Do not install the equipment near heat sources such as fire ,
power , or other amplifiers that produce heat.
5. Do not insert the metal or other objects to the equipment in
addition to connecting cables to ports.
6. Do not demolish the equipment by yourself ; it should be
maintained by professional maintenance staff.
