HDMI KVM,Extender over Single,cat5e/6(60M),HDMI KVM Extender
1.0 INTRODUCTION
The HDMI KVM Extender use single cat-5e or cat-6(recommended)
cables up to 60 meters instead of HDMI cable to transmit high
definition signal, for cutting down cost.
2.0 SPECIFICATIONS
| HDMI Version | HDMI1.3a |
| Transmitter Input Ports | HDMIx1(AF),USB(BF)x1 |
| Transmitter Output Ports | HDMIx1(AF),RJ45x1 |
| Receiver Input Ports | RJ45x1 |
| Receiver Output Ports | HDMIx1(AF),USB(AF)x2 |
| Frequency Bandwidth | 2.25Gbps (single link) |
| Input/Output Resolutions | 480i/p,576p,720p,1080i/p |
| Audio | Sample rate:32kHz,44.1kHz,48kHz |
| IR remote control | 20~60KHz;NEC |
| ESD Protection Human Body Model | ± 8kV (air-gap discharge)± 4kV (contact discharge) |
| Operating Temperature | 0˚C ~ 40˚C / 32˚F ~ 104˚F |
| Storage Temperature | 20˚C ~ 60˚C / -4˚F ~ 140˚F |
| Relative Humidity | 20~90% RH (non-condensing) |
| Dimensions (mm) | 100x65x25 |
3.0 FEATURES
1. Signal transmission :CAT5e/6(recommended) cables up to 60 meters
instead of HDMI cables are connected between TX and RX Extender.
2. Support HDMI 1.3/HDCP1.1&1.2;
3. Support input/output resolution:480i/p,576p,720p,1080i/p;
4. Support Support TX With HDMI Loopout.
5. The design of pure hardware, plug and play, no need for
additional software;
6. Support long distance controlled by keyboard and mouse.
4.0 PACKAGE CONTENTS
When first unpacking your extender please check to see if the
following items are included:
1. HDMI Extender Transmitter
------------------------------------------------ 1PCS
2. HDMI Extender Receiver
--------------------------------------------------- 1PCS
3. 5V DC Power Supply adapter
--------------------------------------------- 2PCS
4. USB Data
Cable----------------------------------------------------------------1PCS
5. Operation Manual
------------------------------------------------------------- 1PCS
5.0 PANEL DESCRIPTIONS
HDMI KVM Extender Transmitter
1. DC5V---------------------------------------DC Power input port
2. HDMI INPUT ------------------------------- HDMI Source port
3. USB INPUT --------------------------------------USB Input port
4. Cat5e/6 Output ---------------------------Cat5e/6 Output port
5. HDMI Output -------------------------------HDMI Loopout port
6. POWER --------------------------------DC Power Input Status
HDMI KVM Extender Receiver
7. Cat5e/6 INPUT ------------------------------Cat5e/6 Input port
8. POWER ---------------------------------DC Power Input Status
9. DC5V----------------------------------------DC Power input port
10. HDMI OUTPUT ------------------------------HDMI Output port
11. Keyboard/Mouse -----------------------Keyboard and Mouse

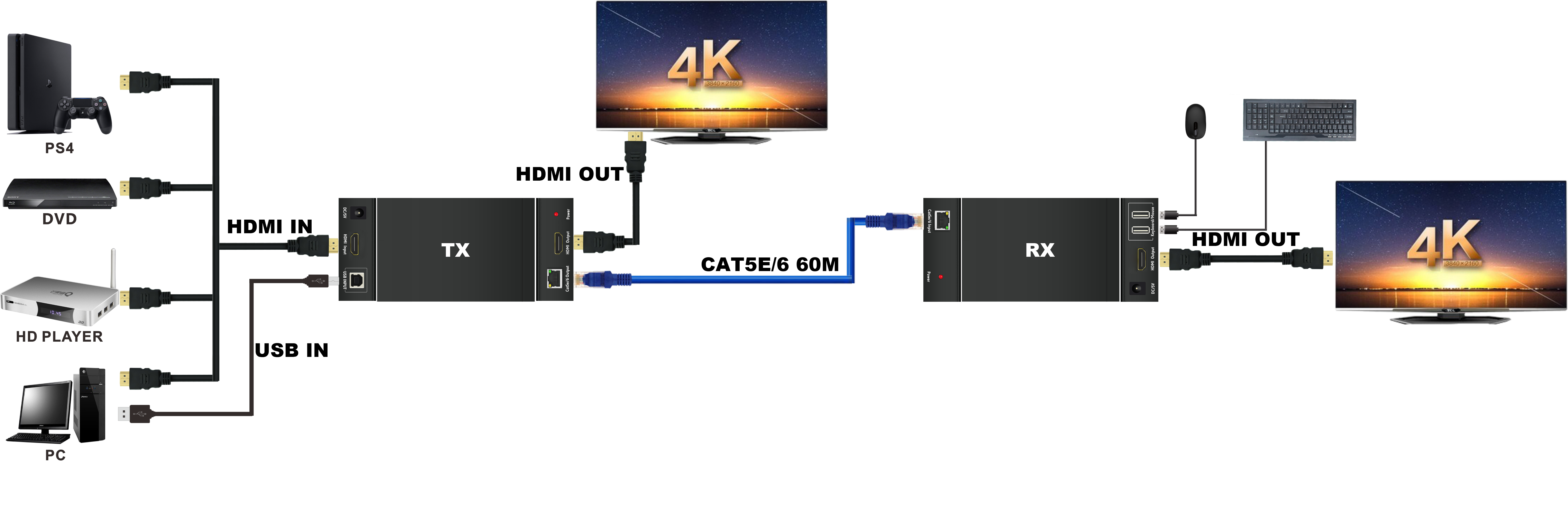

6.0 CONNECTION AND OPERATION
Before installation, please make sure all devices you wish to
connect have been turned off.
1. Connect HDMI signal source to the transmitter of HDMI KVM
extender;
2. Connect USB signal source to the transmitter of HDMI KVM
extender;
3. Use LAN cable(Recommend:CAT5e/6) to connect transmitter and
receiver of HDMI KVM Extender;
4. Connect the display equipment with HDMI connector to the
receiver of
HDMI KVM extender;
5. Connect keyboard and mouse to the receiver of HDMI KVM extender;
6. Turn on the power of all devices and the product starts to work.
7.0 INSTALLATION AND PRECAUTIONS
To avoid electric shock , product damage and to protect your safety
, please notice the following:
1. Please slowly plug or unplug signal cables and do not often plug
, unplug , or shake them.
2. The equipment should not be placed under the sun , rain and damp
or unventilated environment.
3. Liquid items should not be placed on the equipment.
4. Do not install the equipment near heat sources such as fire ,
power , or other amplifiers that produce heat.
5. Do not insert the metal or other objects to the equipment in
addition to connecting cables to ports.
6. Do not demolish the equipment by yourself ; it should be
maintained by professional maintenance staff.
