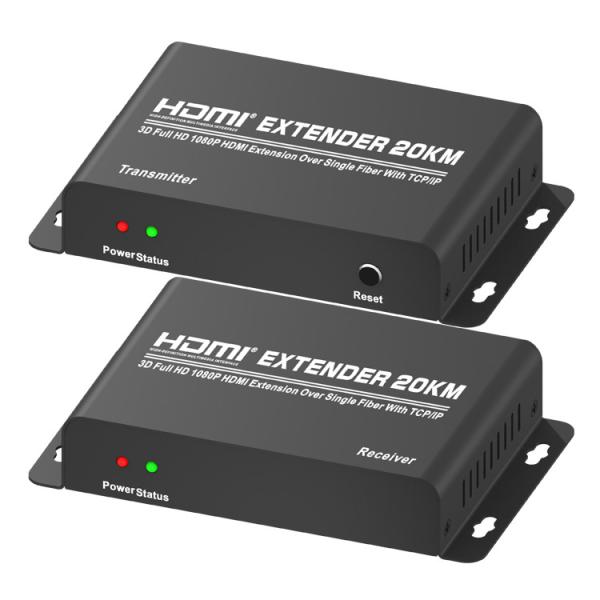

HMID Over Single Fiber(20KM) , Full HD 1080P TCP/IP , Extender

INTRODUCTION

The HDMI Extender over single fiber is a tool for extending your HDMI signal over long distances to a compatible display. Instead of using expensive HDMI cables, your existing fiber cables/sockets can be utilized to perform advanced functions like transferring Deep Color (12 bits/color) video and digital audio, with a bandwidth up to 225MHz. The HDMI Transmitter and Receiver, over one fiber extender is your substantial HDMI extender tool. The HDMI Extender also support IR re-transmitting, so you can control the Source which is 200 meters outside using the HDMI extender.

FEATURES

1.Signal transmission :SC fiber(recommended) cables up to 20000

meters instead of HDMI cables are connected between TX and RX

Extender.

2.Support HDMI1.3,HDCP 1.2 protocol compliant.

3. Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i.

4. Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i.

5. Support CEC.

6. Support 20~60KHz IR working.

7. protocol compliant TCP/IP one transmitter and multiple receivers,

with a maximum of 253 receivers.

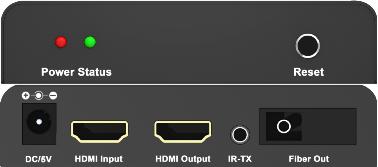

PANEL DESCRIPTIONS

Please study the panel drawings below and become familiar with the signal

input(S),output(S)and power requirements.

Power --------------------------------------Power Indicator

Status -----------------------------------Working Indicator

Reset ------------------------------------------Reset button

DC/5V ------------------------------------Power Input port

HDMI Input -------------------------------HDMI Input port

HDMI Output ------------------------------HDMI Loopout

IR-TX -----------------------------------------IR transmitter

Fiber Out --------------------------------------Fiber output

Power --------------------------------------Power Indicator

Status -----------------------------------Working Indicator

DC/5V ------------------------------------Power Input port

HDMI Output --------------------------------HDMI output

IR-RX --------------------------------------------IR receiver

Fiber Input --------------------------------------Fiber Input

CONNECT AND OPERATE

Before installation, please make sure all devices you wish to connect have been turned off.

1. Connect HDMI signal source to the transmitter of HDMI extender.

2. Use fiber cable(Recommend:SC) to connect transmitter and receiver

of HDMI Extender.

3. Connect the display equipment with HDMI connector to the receiver of

HDMI extender.

4. Power on all connected devices, Choose the input of the display device

to its HDMI channel.
