3D 1080P , HDMI 4 X 1 , PIP Switch
DESCRIPTION
The product is a high performance 4 by 1 Quad Multi-Viewer with
seamless switcher.It supports four HDMI input sources to be
displayed on one screen with multi-view mode.As a switcher,it can
seamlessly switch the for HDMI input freely.The product can be
controlled by various ways,through the front panel button,The
product provides an S/PDIF link to output the HDMI source audio at
the same time.
TECHNICAL PARAMETER IN DETAIL
| HDMI Source Input Port | HDMIx4(A TYPE) |
| Display Device Output Port | HDMIx1(A TYPE) |
| HDCP Compliant | YES |
| Source Device Selection | Push Button/IR Remote Control |
| Input/Output resolution | 480i/p,576i/p,720p,1080i/p@60Hz,4Kx2K@30Hz |
| Audio output | PCM2,5.1,7.1CH,Dolby5.1,DTS5.1 |
| Video Bandwidth | 10.2Gbps |
| Input Video Signal | 0.5-1.0 Volts P-P |
| Input DDC signal | 5 Volts P-P(TTL) |
| Deep Color | 36bit |
| Operation Temperature | 0℃-70℃ |
| Power Consumption(max) | 6.5Watts |
| Working Voltage | DC 12V |
| Power Adaptor | DC 12V 2A |
| Net Weight(Kg) | 0.5 |
| Dimension: L×W×H(mm) | 221x103x25mm |
FEATURES
1. Support HDMI1.3a HDCP1.1/1.2;
2. Supports Multiplexed HDMI 4 input and 1 output;
3. Support high resolutions up to including
480i/p,576p,720i/p,1080i/p;
4. Support 4 by 1 Quad Multi-viewer and seamless switch(with same
resolution);
5. Support scaler up,scaler down function;
6. Support multi output resolution;
PANEL INTRODUCTION
Front Panel
IR------------------------------------------------IR Receiver
Power----------------------------------------Power States
IN4~IN1-------------------------------HDMI Input States
OUT AUDIO -----------------------Output Audio switch
MODE -------------------------------------- MODE switch
720P/1080P-------------------Output resolution switch
SIZE -----------------------------------Screen size switch
SOURCE -----------------------------HDMI Input switch
ON/OFF --------------------------------------Power switch
Rear Panel
DC5~12V----------------------------DC Power input port
AUDIO OUTPUT----- Digital or Analog audio output
HDMI OUTPUT ---------------------- HDMI Output port
HDMI INPUT4~1-----------------------HDMI Input ports

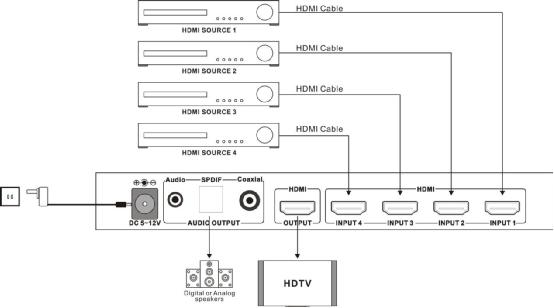

APPLICATION
It routes 4 ports HDMI signals from source device such as DVD,
Satellite Receiver, Set-top Box, DV Camera, A/V Receiver and other
HDMI enabled device to high definition display device such as HDTV
and HDMI Flat Panel Display.
1. Connect high definition display device such as HDTV TO HDMI
Switch's
output port;
2. Connect source device such as DVD and ps4 TO HDMI Switch's input
3. After all the connections have been successfully done and then
power on,
you can select the information you want to view or listen.

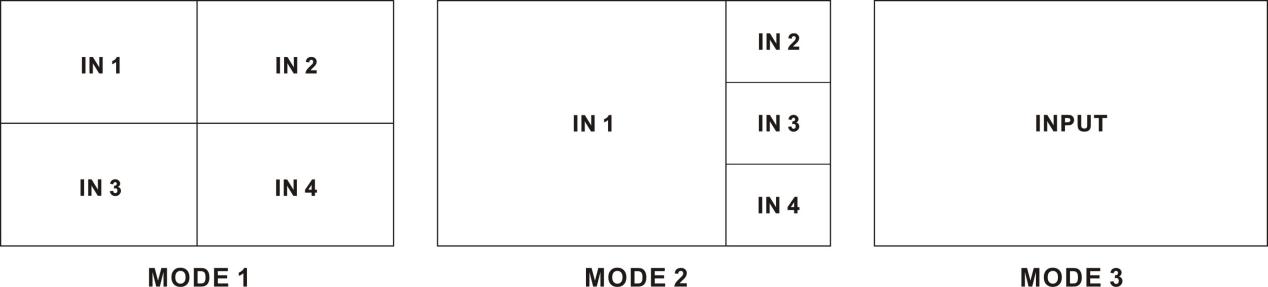

DETAIL DESCRIPTION OF DISPLAY MODE
MODE1: The four HDMI input sources are displayed in 2x2 on one
screen.In this mode, press the IN1~IN4 button will select the
corresponding audio to the HDMI and independent audio output.
MODE2: The four HD input sources are displayed with one bigger and
three smaller windows on one screen.In this mode,press IN1~IN4
button will select the corresponding channel to the bigger window
and to the HDMI and audio output.
MODE3: This is the full screen mode,press IN1~IN4 button will
select the corresponding channel and displayed in full screen as a
seamless switcher.
