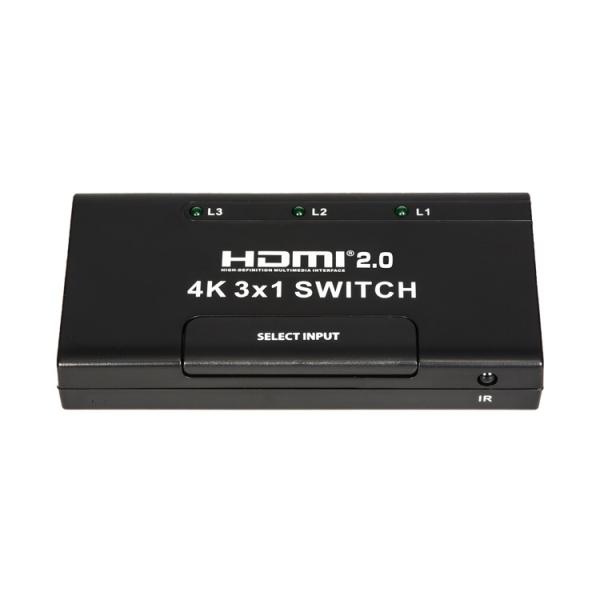

    3840x2160 60Hz 600Mhz 3 Port HDMI 4K Switcher

    Ask Lasest Price
    Brand Name : ZENHON
    Model Number : T-303ES
    Certification : CE,ROHS,REACH
    Payment Terms : L/C, T/T
    Supply Ability : 300000 stes per month
    Delivery Time : 20-30 days
    Price : Negotiable
    • Product Details
    • Company Profile

    3840x2160 60Hz 600Mhz 3 Port HDMI 4K Switcher

    4K 60Hz 3 X 1 ,3 Port HDMI , Switch With Remote HDMI Auto Switch Box


    TECHNICAL PARAMETER IN DETAIL


    Product3X1 HDMI SWITCH
    HDMI Source Input Port3
    Display Device Output Port1
    Source Port Connector19 PIN HDMI(A TYPE)
    Display Device Port Connector19 PIN HDMI(A TYPE)
    HDCP CompliantYES
    Source Device SelectionPush Button IR Remote Control
    Input Video Signal0.5-1.0 Volts P-P
    Input DDC signal5 Volts P-P(TTL)
    Deep Color48 bit
    Single Link Range3840x2160@60
    HDMI VersionHDMI2.0
    BandwidthUp to 600Mhz
    Signal SpeedUp to 18Gbps
    The length of input cable10M
    The length of output cable10M
    The cable standard28AWG HDMI2.0
    Vertical Frequency Range60Hz
    Power Consumption(max)2.5 Watts
    Operation Temperature0℃ TO 70℃
    Working VoltageDC 5V
    Power Adaptor5V 1A
    Net Weight(Kg)0.13
    Dimension: L×W×H(mm)100×48×25

    FEATURES


    1. To support the simultaneous transmission of two video streams, multiple

    video signals can be transmitted to the same screen;


    2. Switching is done via itself automatically when signal present on the ports;


    3. Compliant with HDMI2.0, HDCP2.2 and DVI 1.0;


    4. Support high resolution VESA mode video format up to QSXGA@60Hz;


    5. Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio;


    6. Supports IR and Panel button control;.
