HDMI 2 x 4 , 4K x 2K , 3D Switch/Splitter
Technical parameters
| HDMI Source Input Port | 2 |
| Display Device Output Port | 4 |
| Source Port Connector | 19 PIN HDMI |
| Display Device Port Connector | 19 PIN HDMI |
| Deep Color | 48 Bit |
| Single Link Range | 3840x2160 |
| Input Video Signal | 0.5-1.0 Volts P-P |
| Input DDC Signal | 5 Volts P-P(TTL) |
| HDCP Compliant | YES |
| HDMI Version | HDMI1.4 |
| Bandwidth | Up to 340Mhz |
| Signal Speed | Up to 10.2Gbps |
| The length of input cable | PS4≤15M；BLUE DVD≤15M |
| The length of output cable | ≤25M |
| The cable standard | 26AWG HDMI1.4 |
| Vertical Frequency Range | 60Hz |
| Power Consumption(max.) | 6.5Watts |
| Operation Temperature | 0℃-70℃ |
| Working Voltage | DC 5V |
| Power Adaptor | 5V 1A |
| Net Weight | 0.25kg |
| Dimension: L*W*H(mm) | 150x64x25 |
Features
1. Fully HDMI 1.4 specification compliant. It is applicable to
source device and high definition display device ,such as DVD and
HDTV which have HDMI Ports or digital ports and are compliant with
HDCP protocol.
2. Support high resolutions up to including
480i/p,576i/p,720i/p,1080i/p and 4Kx2K@25/30Hz
3. Support 30/36 dark, extended color space support,
including:SYCC601,Adobe RGB,AdobeYCC601
4. Blu-ray DVD 24/50/60fs/HD-DVD/xvYCC.
5. Audio formats DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3 and DSD.
6. Extend the transmission distance and improve transmission
signal.

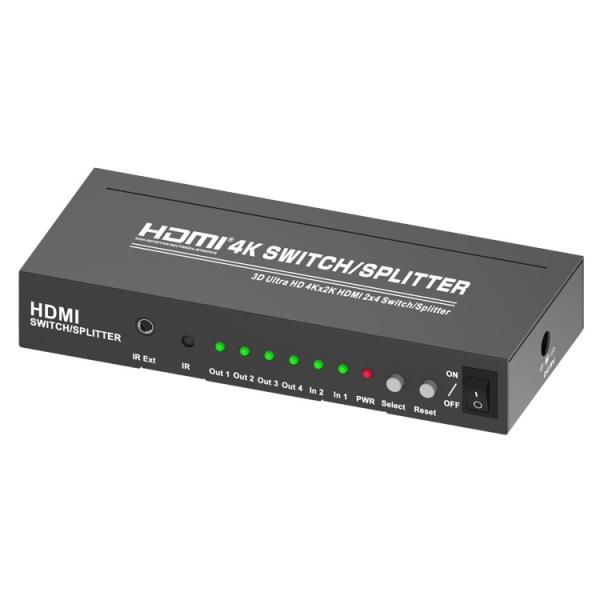

Panel Introduction
IR Ext ---------------------------------IR Extension Port
IR ----------------------------------------------------IR Port
Out1-4--------------------------------------Output Status
In1-2-------------------------------------------Input Status
PWR-----------------------------------------Power Status
Select ----------------------------------Input Port Select
Reset ----------------------------------------Reset button
ON/OFF ------------------------------------Power button
DC/5V-----------------------------DC Power Input Port
HDMI Input1-2-----------------------HDMI Input Ports
HDMI Output1-4------------------HDMI Output Ports
Connection diagram
1. Connect the HDMI cable between signal source and input port of
Splitter.
2. Connect the HDMI cable between output port of Splitter and HDTV.
3. Connect splitter and power adapter.
4. Open the signal source and the power of HDTV, then it works.
5. Use the remote control or toggle button to select the source you
want.
