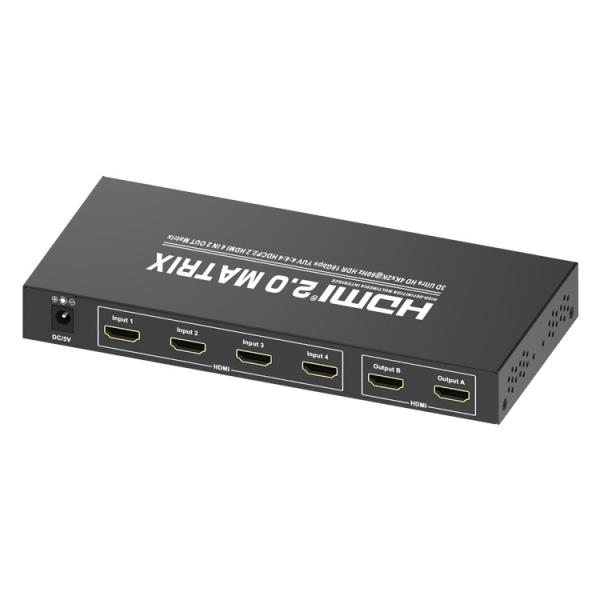

HDMI 2.0 , 4 x 2 , 4K x 2K , 60Hz , Matrix
TECHNICAL PARAMETERS
| Display Device Output Port | 2 |
| Display Device Port Connector | HDMI 19PIN |
| Audio Output port | SPDIFx1,Stereox1 |
| HDMI Source Input Port | 4 |
| Source Port Connector | HDMI 19PIN |
| HDCP Compliant | YES |
| Single Link Range | 3840x2160 |
| Input DDC Signal | 5 Volts P-P(TTL) |
| Input Video Signal | 0.5-1.0 Volts P-P |
| Deep Color | 36bit |
| HDMI Version | HDMI2.0 |
| Bandwidth | Up to 600Mhz |
| Signal Speed | Up to 18Gbps |
| The length of input cable | PS3≤10M；BLUE DVD≤10M |
| The length of output cable | ≤10M |
| The cable standard | 26AWG HDMI2.0 |
| Vertical Frequency Range | 60Hz |
| Power Consumption(max.) | 6.5Watts |
| Operation Temperature | 0℃-70℃ |
| Working Voltage | DC 5V |
| Power Adaptor | 5V 2A |
| Dimension: L*W*H(mm) | 201*93*25 |
| Net Weight | 1.08kg |
FEATURES
1. When its 4 input ports are separately connected to 4 signal
sources
with HDMI cables, the HDMI Matrix automatically recognizes the last
connected port and switches its input signal to 2 displays;
2. Support HDMI2.0,HDCP2.2;
3. The needed input signal sources must be selected by using remote
control or pushing button in order to make 2 displays showing 2
different
Signals;
4. Use remote control or push button to freely select input source.
5. Support video format up to 4k2k@60Hz with 24bit RGB/YcbCR
4:4:4/YCBCR4:4:4,and up to 4k2k@60Hz with 12bit YCBCR 4:4:4;
6. LED indicates signal /power mode.
PANEL DESCRIPTIONS
Please study the panel drawings below and become familiar with the
signal input(s), output(s) and power requirements.
EDID -----------------------------------------EDID Setting Switch
Toslink ------------------------------SPDIF Digital Audio Output
R/L ----------------------------------Stereo Analog Audio Output
Status/ARC --------------------------------------------ARC Switch
IR ---------------------------------------------------IR Receiver
Port
B1-B4 ----------------------------------------Output B Port Status
OUT B ----------------------------------------------Output B Select
A1-A4 -------------------------------------Output A Output Status
OUT A ----------------------------------------------Output A Select
PWR ---------------------------------------------------Power Status
ON/OFF -----------------------------------------------Power Switch
DC/5V ---------------------------------------------Power Input Port
INPUT 1-INPUT 4 ---------------------------------Input 1-4 Ports
OUTPUT B -------------------------------------------Output B Port
OUTPUT A -------------------------------------------Output A Port
CONNECTION DIAGRAM
Before installation, please make sure all devices you wish to
connect have been turned off.
1. Connect the HDMI from source(DVD, HD Player,PC) to matrix.(Input
cables are optional).
2. Connect the HDMI output from to the TV which has HDMI input.
3. Insert the DC side of 5V power supply into and then connect the
AC
side of the power supply into the wall outlet.
4. Power on the source and TV, choose the input of TV to its HDMI
channel.
5. The image does not need to be adjusted, the matrix will position
it
automatically, the user may adjust the horizontal position under
some extreme condition.
6.06Select the working mode of the matrix via the remote control or
panel button.
EDID Selector: Select HDMI output signal format via EDID Selector.
| Number | EDID Selector | Description |
| 1 | 0000 | 1080P, Audio 2.0 |
| 2 | 0001 | 1080P,Dolby/DTS 5.1 |
| 3 | 0010 | 1080P,HD Audio 7.1 |
| 4 | 0011 | 3D 1080P,Audio 2.0 |
| 5 | 0100 | 3D 1080P,Dolby/DTS 5.1 |
| 6 | 0101 | 3D 1080P,HD Audio 7.1 |
| 7 | 0110 | 4Kx2K@30Hz,Audio2.0 |
| 8 | 0111 | 4Kx2K@30Hz,Dolby/DTS 5.1 |
| 9 | 1000 | 4Kx2K@30Hz,HD Audio 7.1 |
| 10 | 1001 | 4Kx2K@60Hz,4:4:4,Audio 2.0 |
| 11 | 1010 | 4Kx2K@60Hz,4:4:4,Dolby/DTS 5.1 |
| 12 | 1011 | 4Kx2K@60Hz,4:4:4,HD Audio 7.1 |
| 13 | 1100 | Copy EDID from HDMI Out A |
| 14 | 1101 | Copy EDID from HDMI Out B |
| 15 | 1110 | Auto,compare Out A and Out B |
| 16 | 1111 | PC control mode |
