HDMI 2 X 4 , 3D 4K X 2K , 60Hz Switch/Splitter
Introduction
HDMI Switch/Splitter is a product which can distribute HDMI signal
without loss to one or more high definition display device such as
HDTV. It can optimize your home theatre system to the best effect.
HDMI signal is distributed from source device such as DVD,
Satellite Receiver, Set-Top Box, DV Camera, A/V Receiver and other
HDMI enabled device to high definition display device such as HDTV
and HDMI Flat panel Display.
Technical parameters
| HDMI Source Input Port | 2 |
| Display Device Output Port | 4 |
| Source Port Connector | 19 PIN HDMI |
| Display Device Port Connector | 19 PIN HDMI |
| Output Audio Port | SPDIFx1,R/Lx1 |
| HDCP Compliant | YES |
| Single Link Range | 3840x2160 |
| Input Video Signal | 0.5-1.0 Volts P-P |
| Input DDC Signal | 5 Volts P-P(TTL) |
| Deep Color | 48 Bit |
| HDMI Version | HDMI2.0 |
| Bandwidth | Up to 600Mhz |
| Signal Speed | Up to 18Gbps |
| The length of input cable | PS4≤10M；BLUE DVD≤10M |
| The length of output cable | ≤10M |
| The cable standard | 28AWG HDMI2.0 |
| Vertical Frequency Range | 60Hz |
| Power Consumption(max.) | 4.5Watts |
| Operation Temperature | 0℃-70℃ |
| Working Voltage | DC 5V |
| Power Adaptor | 5V 1A |
| Net Weight | 0.25kg |
| Dimension: L*W*H(mm) | 149x64x25 |
Panel Introduction
SPDIF ---------------------------------------Digital Audio Output
Port
R/L ------------------------------------------Analog Audio Output
Port
IR --------------------------------------------------------IR
Receiver Port
Out1-4--------------------------------------------------Output1-4
Status
In1-2------------------------------------------------------Input1-2
Status
Power ------------------------------------------------------Power
Status
Select ------------------------------------------------Input select
button
ON/OFF ----------------------------------------------------Power
button
HDMI Input1-2----------------------------------HDMI Input1-2 Ports
HDMI Output1-4-----------------------------HDMI Output1-4 Ports
DC5V---------------------------------------------DC Power Input
Port

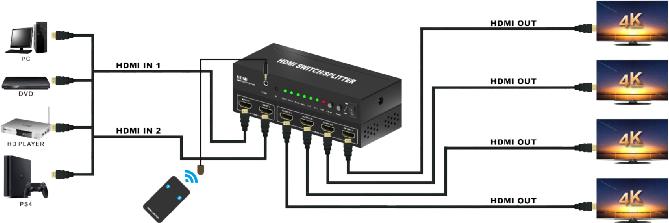

Connection diagram
1. Connect the HDMI cable between signal source and input port of
Splitter.
2. Connect the HDMI cable between output port of Splitter and HDTV.
3. Connect splitter and power adapter.
4. Open the signal source and the power of HDTV, then it works.
5. Use the remote control or toggle button to select the source you
want.
