HDMI 3 X 1 , 4K X 2K , 3D Ultra HD SWITCHER
TECHNICAL PARAMETER IN DETAIL
| Product | 3X1 HDMI SWITCH |
| HDMI Source Input Port | 3 |
| Display Device Output Port | 1 |
| Source Port Connector | 19 PIN HDMI(A TYPE) |
| Display Device Port Connector | 19 PIN HDMI(A TYPE) |
| HDCP Compliant | YES |
| Source Device Selection | Push Button IR Remote Control |
| Input Video Signal | 0.5-1.0 Volts P-P |
| Input DDC signal | 5 Volts P-P(TTL) |
| Deep Color | 36bit |
| Single Link Range | 3840x2160 |
| HDMI Version | HDMI1.4 |
| Bandwidth | Up to 340Mhz |
| Signal Speed | Up to 10.2Gbps |
| The length of input cable | ≤10M |
| The length of output cable | ≤10M |
| The cable standard | 28AWG HDMI1.4 |
| Vertical Frequency Range | 60Hz |
| Power Consumption(max) | 2.5 Watts |
| Operation Temperature | 0℃ TO 70℃ |
| Working Voltage | DC 5V |
| Power Adaptor | 5V 1A |
| Net Weight(Kg) | 0.13 |
| Dimension: L×W×H(mm) | 100×48×25 |
FEATURES
1. Switching is done via itself automatically when signal present
on the ports.
2. Support HDCP protocol and applicable to source device and high
definition
display device such as DVD and HDTV which have HDMI ports or
digital
ports,and are compliant with HDCP protocol.
3. Support high resolutions up to
480i/p,576p,720i/p,1080i/p,4Kx2K@25/30Hz.
4. Support HDMI1.4
5. Extend the transmission distance and improve transmission
signal.
6. Compatible with DVI by using HDMI TO DVI adapter.
APPLICATION
It switches several routes HDMI signals from source device such as
DVD, Satellite Receiver, Set-top Box, DV Camera, A/V Receiver and
other HDMI enabled device to high definition display device such as
HDTV and HDMI Flat Panel Display.

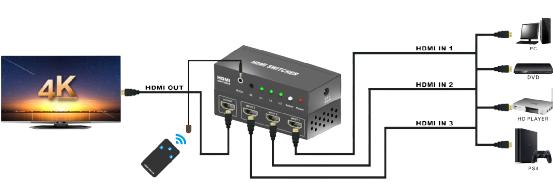

1. Connect high definition display device such as HDTV TO HDMI
Switch's
output port.
2. Connect source device such as DVD and ps3 TO HDMI Switch's input
ports.
3. After all the connections have been successfully done and then
power on,
you can select the information you want to view or listen.
