HDMI to AV, + Stereo, AV Signal Converter
1.0 INTRODUCTION
HDMI to CVBS signal converter which will convert HDM video signal
or audio signal to AV (CVBS) composite video signal and the FL / FR
stereo audio signals, while support DVI system sideline signals.
Help users convert the high quality of the HDMI video signal into
normal CVBS signal (standard-definition 480i, 576i,).So that can
play on TV, VHS VCR, DVD recorders, etc. Support NTSC and PAL two
TV format.
2.0 TECHNICAL PARAMETER IN DETAIL
| One HDMI input | HDMI x 1 |
| one AV output | CVBS x1; L / R x1;3.5mm Stereo x1 |
| HDMI input | 480i/p, 576i/p, 720p,1080i/p,1920x1200 |
| Compatible with DVI mode | 800x600,1024x768,1280x720,1280x1024,1920x1080/@60hz |
| CVBS output | 480I, 576I |
| Audio output | L/R channels;3.5mm earphone |
| Dimensions | 73mm(W)x60.5mm(D)x 22.5mm(H) |
3.0 FEATURES
1. Hardware conversion, plug and play without any software driver;
2. Support the HDCP protocol, support for HDMI 1.4b;
3. Support NTSC and PAL two standard TV formats;
4.0 PACKAGING ACCESSORIES:
When first unpacking your extender please check to see if the
following items are included:
1. HDMI to AV Converter----------------------------1 Pcs
2. User manual----------------------------------------1 Pcs
3. Power supply---------------------------------------1 Pcs

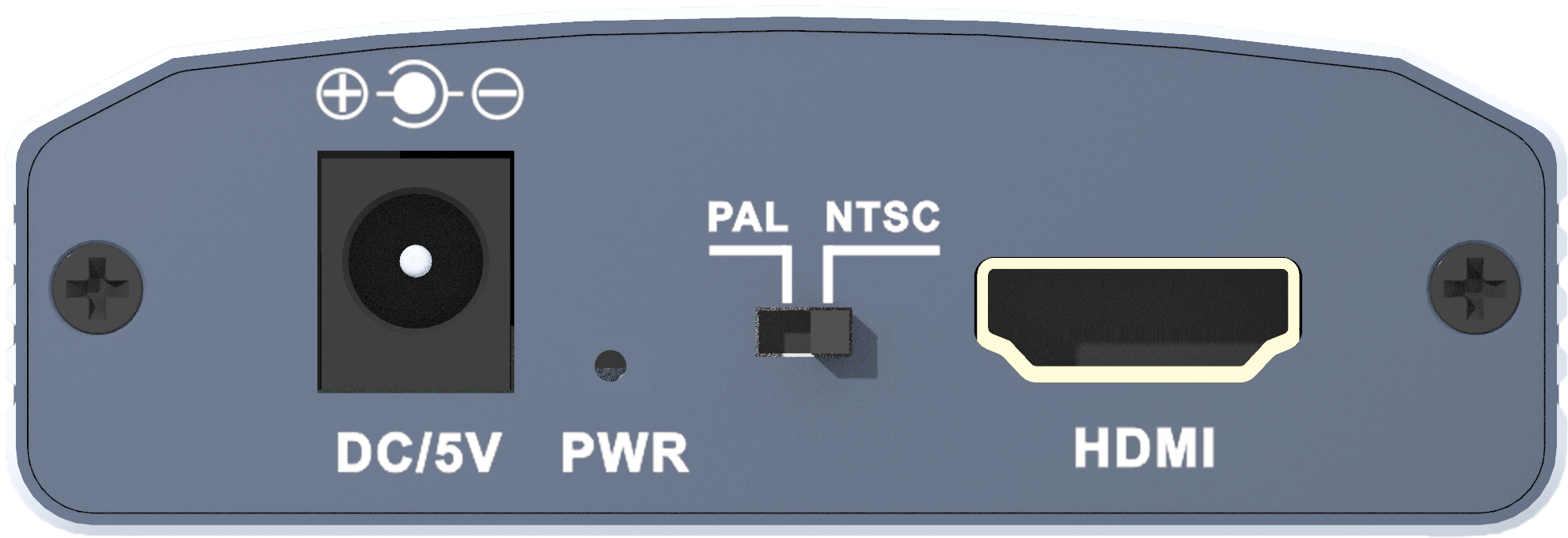

5.0 PANEL DESCRIPTIONS
Please study the panel drawings below and become familiar with the
signal input(s), output(s) and power requirements.
1. DC 5V ----------------------------------------------------------DC 5V Input
2. PWR---------------------------------------------------------Power indicator
3. PAL/NTSC -------PAL and NTSC standard format selector switch
4. HDMI -------------------------------------------------------------HDMI Input
5. A/V -----------------------------------------------------------------AV
Output
6.
Audio------------------------------------------------------earphone
Output
6.0 APPLICATION AREAS
A. Civil Industry: set-top boxes, XBOX360, PS3, high-definition
players.
B. Industrial sector: high-definition camera, video camera, with
this common
display device will instead of big screen HDMI television monitors, to
reduce the cost and space.
7.0 CONNECT AND OPERATE
Before installation, please make sure all devices you wish to
connect have been turned off.
1. Connect the HDMI input from source device to this converter.(Input
cables
are optional)
2. Connect the AV and Stereo audio output of this product to the display device.
3. Insert the DC side of 5V power supply into this product and then
connect
the AC side of the power supply into the wall outlet.
4. Power on all connected devices, Choose the input of the display device
to its AV channel.
5. The image does not need to be adjusted, the Converter will position
it automatically, the user may adjust the horizontal position under
some extreme condition.
Attention: Insert / Extract cable gently.
8.0 FAILURE CHECK:
No signal output
1. If LED power indicator is not light, check whether the input
access to the mains power supply (AC110 ~ 220V).If external power
supply LED does not light, check whether the electronic exchange.
Or external power supply bad.
2. LED light, check the HDMI output device are set to the HDMI OUT,
HDMI cable for damage, AV display devices, whether or not cut to
the AV (CVBS)channel.
No color
1. Check the AV cable damage or not.
2. NTSC-PAL formats with no corresponding NTSC or PAL TV
9.0 INSTALLATION AND PRECAUTIONS
To avoid electric shock , product damage and to protect your safety
, please notice the following:
1. Please slowly plug or unplug signal cables and do not often plug
, unplug , or shake them.
2. The equipment should not be placed under the sun , rain and damp
or unventilated environment.
3. Liquid items should not be placed on the equipment.
4. Do not install the equipment near heat sources such as fire ,
power , or other amplifiers that produce heat.
5. Do not insert the metal or other objects to the equipment in
addition to connecting cables to ports.
6. Do not demolish the equipment by yourself ; it should be
maintained by professional maintenance staff.
