HDMI to Scart, + Stereo, AV Signal Converter
1.0 INTRODUCTION
The MHL/HDMI to SCART converter which will convert digital MHL/HDMI
video and audio signal to composite video signal and the FL / FR
stereo audio signal, while support DVI system sideline signals.
Help users convert the high quality of the HDMI signal and smart
Phone MHL signal to normal CVBS signal (standard-definition 480i,
576i,).So that can play on CRT TV, VHS VCR, DVD recorders, etc. The
MHL/HDMI to SCART converter support NTSC and PAL TV formats output.
2.0 SPECIFICATIONS
| Input port | 1xHDMI |
| Output port | 1xSCART,1x3.5mm Stereo |
| Dimensions (mm) | 73(L)x60.5(W)x25(H) |
| Wight (g) | 90 |
| Input Resolution | 640x480@60Hz,800x600@60Hz 1024x768@60Hz,1280x720@60Hz 1280x1024@60Hz,1360x768@60Hz 1600x1200@60Hz,1920x1080@60Hz 480i/60Hz, 480p/60Hz, 576i/60Hz, 576p/60Hz 720p50/60Hz,1080i50/60Hz,1080p23.97/24/25/50/59.94/60Hz 4Kx2K/30Hz |
| CVBS output | PAL,NTSC |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | 20°C ~ 60°C / -4°F ~ 140°F |
| elative Humidity | 20 ~ 90% RH (Non-condensing) |
| Power Consumption (Max) | 2.5W |
3.0 FEATURES
1. No need to install drivers, portable, flexible, plug and play;
2. Support HDMI1.4b Compatible with HDCP;
3. Support Input resolution: 480i/p,576i/p,720p,1080i/p,4Kx2K@30Hz;
4. High quality scaling technology for auto resolutions;
5. Support NTSC and PAL two standard TV formats output.
6. Share your smart phone photos, music and movies on the TV.
4.0 PACKAGE CONTENTS
Before attempting to use this unit please check the packing and
make sure the following items are contained in the shipping carton:
1. HDMI to Scart Converter----------------------1Pcs
2. 5V DC Power Supply---------------------------1Pcs
3. User Manual--------------------------------------1Pcs

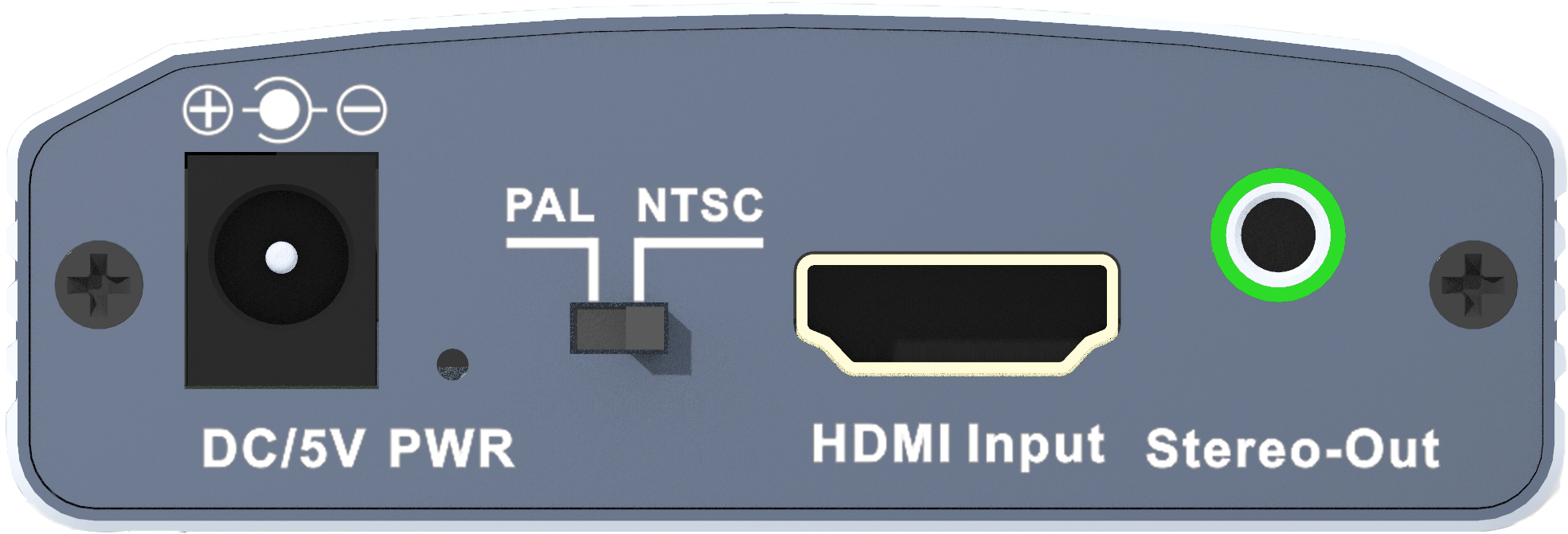

5.0 PANEL DESCRIPTIONS
Please study the panel drawings below and become familiar with the
signal
input(S),output(S)and power requirements.
1. DC 5V ----------------------------------------------------------DC 5V Input
2.
PWR---------------------------------------------------------Power
indicator
3. PAL/NTSC -------PAL and NTSC standard format selector switch
4. HDMI
Input------------------------------------------------------HDMI
Input
5.
Stereo-Out-----------------------------------------------earphone
Output
6. Scart Output
--------------------------------------------------Scart Output
6.0 CONNECTION AND OPERATION
Before installation, please make sure all devices you wish to
connect have been turned off.
1. Connect the HDMI input from source device to this
converter.(Input cables are optional).
2. Connect the Scart and Stereo audio output of this product to the display device.
3. Insert the DC side of 5V power supply into this product and then
connect
the AC side of the power supply into the wall outlet.
4. Power on all connected devices, Choose the input of the display device
to its Scart channel.
5. The image does not need to be adjusted, the Converter will
position
it automatically, the user may adjust the horizontal position under
some extreme condition.
Attention: Insert / Extract cable gently.
7.0 INSTALLATION AND PRECAUTIONS
To avoid electric shock , product damage and to protect your safety
, please notice the following:
1. Please slowly plug or unplug signal cables and do not often plug
, unplug , or shake them.
2. The equipment should not be placed under the sun , rain and damp
or unventilated environment.
3. Liquid items should not be placed on the equipment.
4. Do not install the equipment near heat sources such as fire ,
power , or other amplifiers that produce heat.
5. Do not insert the metal or other objects to the equipment in
addition to connecting cables to ports.
6. Do not demolish the equipment by yourself ; it should be
maintained by professional maintenance staff.
