Scart to HDMI, + Stereo, AV Signal Converter
1.0 INTRODUCTION
This scaler Box is designed to display your analog video/YC//RGB
images on HDTV’s with better viewing resolutions. It can upscale
any SCART input source to HDMI output with a wide-range of
resolutions. Incredibly, this device can also transfer sounds
allowing everyone to enjoy both HD images and sounds.
2.0 SPECIFICATIONS
| Input port | 1xSCART |
| Output ports | 1xHDMI,1x3.5mm Stereo |
| Dimensions(mm) | 73(L)x60.5(W)x22.5(H) |
| Wight (g) | 90 |
| SCART input Format | PAL / NTSC3.58 / SECAM;NTSC4.43 /PAL-M / PAL-N |
| HDMI output resolution | 1080P50 Hz,1080P60 Hz,720P50 Hz,720P60 Hz, 800x600@60Hz,1024x768@60Hz,1280x1024@60Hz |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | 20°C ~ 60°C / -4°F ~ 140°F |
| elative Humidity | 20 ~ 90% RH (Non-condensing) |
| Power Consumption (Max) | 2.5W |
| ESD Protection | Human Body Model:± 8kV (air-gap discharge)± 4kV (contact discharge) |
3.0 FEATURES
1. Scales up SCART to HDTV resolution up to1080p;
2. Support input video systems NTSC/PAL/SECAM;
3. Digital Noise Reduction – Minimizes picture noise, reproducing
images that are true to the original;
4. Block Noise Reduction – Effectively minimizes all MPEG noise,
Improving the digital quality of HDTV broadcasts particularly,
where block noise happens most;
5. MPEG Noise Reduction – Reduce mosquito noise for MPEG video
images without losing detail;
6. 3D (frame based) motion adaptive noise reduction;
7. Advanced 3D motion adaptive de-interlace;
8. Automatic 2:2/3:2 film mode detection.
4.0 PACKAGE CONTENTS
Before attempting to use this unit please check the packing and
make sure the following items are contained in the shipping carton:
1. Scart to HDMI Converter----------------------1Pcs
2. 5V DC Power Supply---------------------------1Pcs
3. User Manual--------------------------------------1Pcs
5.0 PANEL DESCRIPTIONS
Please study the panel drawings below and become familiar with the
signal input(S),output(S)and power requirements.

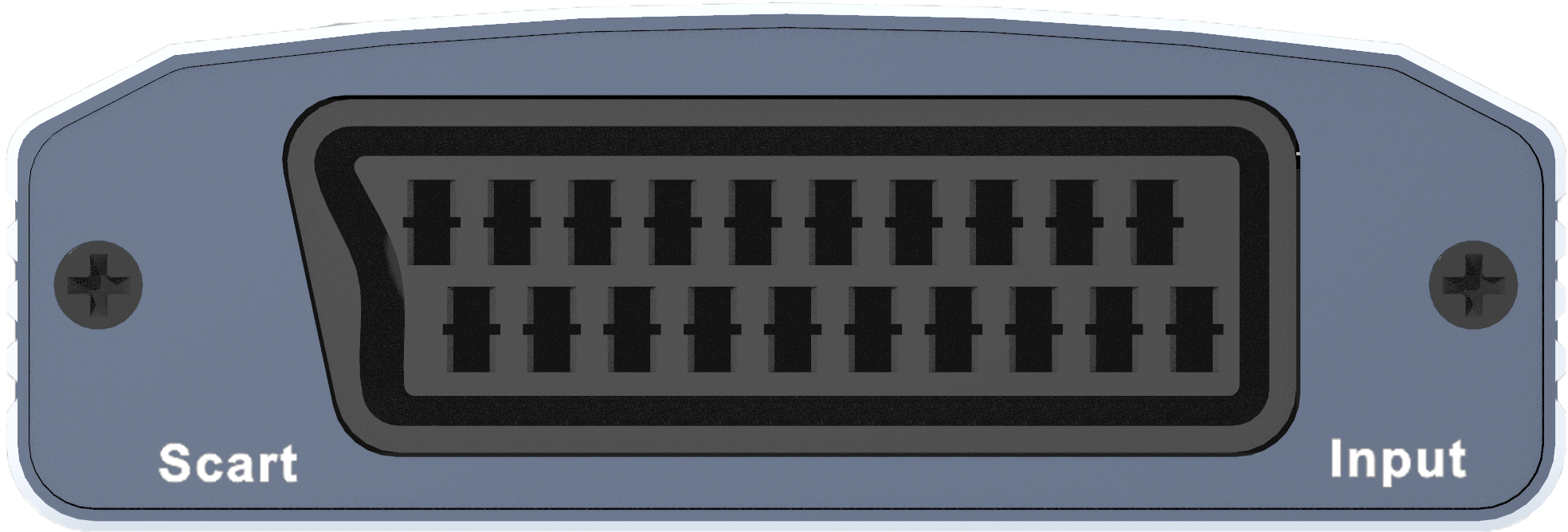

1. Scart Input -------------------------------------------Scart
Input
2. DC/5V -----------------------------------------------DC 5V Input
3. PWR ---------------------------------------------Power Indicator
4. 720P/1080P--------------------------------720p/1080p switch
5. HDMI Out ------------------------------------------HDMI Output
6. Stereo-Out ----------------------------------------Stereo Output
6.0 CONNECTION AND OPERATION
Before installation, please make sure all devices you wish to
connect have been turned off.
1. Connect the Scart input of this product to the Converter.
2. Connect the HDMI output from converter to the this
Displayer.(Input cables are optional)
3. Insert the DC side of 5V power supply into this product and then
connect the AC side of the power supply into the wall outlet.
4. Power on all connected devices, Choose the input of the display
device to its HDMI channel.
5. The image does not need to be adjusted, the Converter will
position it automatically, the user may adjust the horizontal
position under some extreme condition.
Attention: Insert / Extract cable gently.
7.0 INSTALLATION AND PRECAUTIONS
To avoid electric shock , product damage and to protect your safety
, please notice the following:
1. Please slowly plug or unplug signal cables and do not often plug
, unplug , or shake them.
2. The equipment should not be placed under the sun , rain and damp
or unventilated environment.
3. Liquid items should not be placed on the equipment.
4. Do not install the equipment near heat sources such as fire ,
power , or other amplifiers that produce heat.
5. Do not insert the metal or other objects to the equipment in
addition to connecting cables to ports.
6. Do not demolish the equipment by yourself ; it should be
maintained by professional maintenance staff.
