4K X 2K , PIP , HDMI 4 X 1 , Multi-Viewer , Switch
DESCRIPTION
The product is a high performance 4 by 1 Quad Multi-Viewer with
seamless switcher.It supports four HDMI input sources to be
displayed on one screen with multi-view mode.As a switcher,it can
seamlessly switch the for HDMI input freely.The product can be controlled by various ways,through the front panel button,The
product provides an S/PDIF link to output the HDMI source audio at
the same time.
TECHNICAL PARAMETER IN DETAIL
| HDMI Source Input Port | HDMIx4(A TYPE) |
| Display Device Output Port | HDMIx1(A TYPE) |
| HDCP Compliant | YES |
| Source Device Selection | Push Button/IR Remote Control |
| Input/Output resolution | 480i/p,576i/p,720p,1080i/p@60Hz,4Kx2K@30Hz |
| Audio output | PCM2,5.1,7.1CH,Dolby5.1,DTS5.1 |
| Video Bandwidth | 10.2Gbps |
| Input Video Signal | 0.5-1.0 Volts P-P |
| Input DDC signal | 5 Volts P-P(TTL) |
| Deep Color | 36bit |
| Operation Temperature | 0℃-70℃ |
| Power Consumption(max) | 6.5Watts |
| Working Voltage | DC 12V |
| Power Adaptor | DC 12V 2A |
| Net Weight(Kg) | 0.5 |
| Dimension: L×W×H(mm) | 221x103x25mm |
FEATURES
1. Support HDMI1.4 HDCP1.4;
2. Supports Multiplexed HDMI 4 input and 1 output;
3. Support high resolutions up to including:
480i/p,576p,720i/p,1080i/p,4Kx2K@30Hz;
4. Support 4 by 1 Quad Multi-viewer and seamless switch(with same
resolution);
5. Support scaler up,scaler down function;
6. Support multi output resolution;
PANEL INTRODUCTION

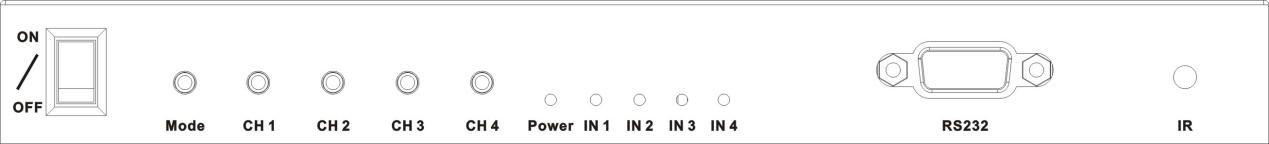

Front Panel
ON/OFF -------------------------------------Power switch
Mode ------------------------------------------Mode switch
CH1~CH4 -------------------------------------Input switch
Power----------------------------------------Power States
IN1~IN4-------------------------------HDMI Input States
RS232--------------------------------RS232 serial port
IR------------------------------------------------IR Receiver
Rear Panel
DC/12V----------------------------DC Power input port
HDMI OUTPUT ---------------------- HDMI Output port
HDMI INPUT4~1-----------------------HDMI Input ports
APPLICATION
It routes 4 ports HDMI signals from source device such as DVD,
Satellite Receiver, Set-top Box, DV Camera, A/V Receiver and other
HDMI enabled device to high definition display device such as HDTV
and HDMI Flat Panel Display.
1. Connect high definition display device such as HDTV TO HDMI
Switch's
output port;
2. Connect source device such as DVD and ps4 TO HDMI Switch's input
ports;
3. After all the connections have been successfully done and then
power on,
you can select the information you want to view or listen.
