HDMI 2.0 , over Single cat5e/6(60M), 4K x 2K , Extender
Introduction
The HDMI2.0 60M HDMI extender uses one single
Cat5e/6(recommended)cable instead of HDMI cable,you can extend the
4K signal to 60 Meters.The purpose of the extender is to achieve
long-distance signale transmission with low- cost wires.
Specification
| Length of CAT-6 cable between Transmitter and Receiver | Up to 60 meters |
| HDMI Input/Output | 4Kx2K@60Hz/1080p/1080i/720p/576p/576i/480p/480i |
| Support audio format | DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD |
| Max bandwidth | 600MHz |
| Max baud rate | 18Gbps |
| Input Video signal | 0.5~1.5Vols p-p |
| Output DDC signal | 5Volts p*p (TT1L) |
| Input/Output HDMI cable distance | ≤10m AWG26 HDMI standard cable |
| Max working current | 800mA |
| Power adapter format | Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A |
| Operating Temperature range | (-15 to +55℃) |
| Operating Humidity range | 5 to 90%RH (No Condensation) |
| Dimension(L x W x H) | 100x73x25mm |
Features
1. Signal transmission :cat5e or cat-6(recommended) cables up to 60
meters instead of HDMI cables are connected between TX and RX
Extender;
2. Compliant with HDMI2.0, HDCP2.2 and DVI 1.0;
3. Support video format up to 4k2k@60Hz with 24bit RGB/YcbCR
4:4:4/YCBCR4:4:4,and up to 4k2k@60Hz with 12bit YCBCR 4:4:4;
4. Support 3D frame sequential video format up to 1080p@60;
5. Support EDID Switch;
6. Audio format support :
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD;
Panel Descriptions
Please study the panel drawings below and become familiar with the
signal
input(S),output(S)and power requirements.
Transmitter Panel
Status --------------------------Power/HDMI Status indicator
HDMI Input -------------------------------------HDMI Input port
DC/5V--------------------------------------DC Power Input Port
EDID---------------------------------------------------EDID switch
Cat5e/6 -----------------------------Network cable output port

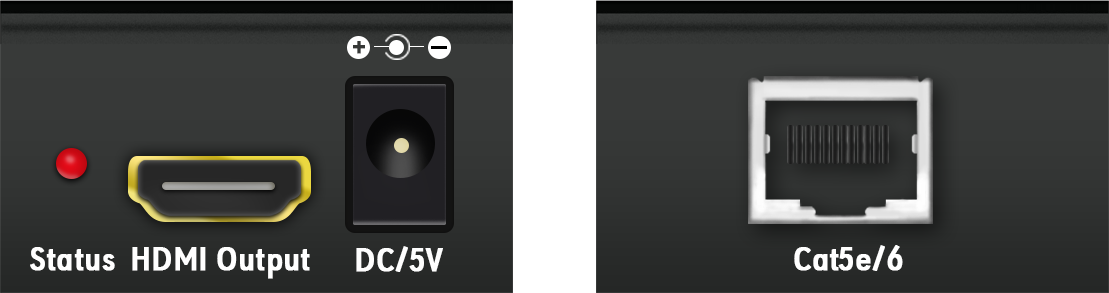

Receiver Panel
Status -------------------------Power/HDMI Status indicator
HDMI Output -------------------------------HDMI Output port
DC/5V-------------------------------------DC Power Input Port
Cat5e/6 -----------------------------Network cable input port
Connect and Operate
Application
(Point to point application)
1. Connect source device with transmitter by one HDMI
cable(Max=10M).
2. Connect display device with receiver by one HDMI cable(Max=10M).
3. Connect TX with RX by one cat5e/6(Max=60M).
4. Connect the power supply to the TX and RX.
5. LED indicator:When a signal is input to work,steady blue light.
