HDMI Over Single Cat5e/6(100M), 4K X 2K , Extender
Specification
| Length of CAT-6 cable between Transmitter and Receiver | Up to100 meters
|
| HDMI Input/Output | 4Kx2K/1080p/1080i/720p/576p/576i/480p/480i |
| Support audio format | DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD |
| Max bandwidth | 340MHz |
| Max baud rate | 10.2Gbps |
| Input Video signal | 0.5~1.5Volts p-p |
| Output DDC signal | 5Volts p-p (TT1L) |
| Input/Output HDMI cable distance | ≤15m AWG26 HDMI standard cable |
| Max working current | 800mA |
| Power adapter format | Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A |
| Operating Temperature range | (-15 to +55℃) |
| Operating Humidity range | 5 to 90%RH (No Condensation) |
| Dimension(L x W x H) | 82x43.5x23.5mm |
Features
1. Signal transmission :cat5e or cat-6(recommended) cables up to
100
meters instead of HDMI cables are connected between TX and RX
Extender;
2. Support HDMI1.4v;
3. Support input/Output Resolution :
4Kx2K@30Hz/1080p/1080i/720p/576p/576i/480p/480i;
4. Support CEC;
5. Audio format support :
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD;
6. No loss of quality;
7. Installs in minutes;
8. Need DC5V/1A power supply.
Panel Descriptions
Please study the panel drawings below and become familiar with the
signal
input(S),output(S)and power requirements.

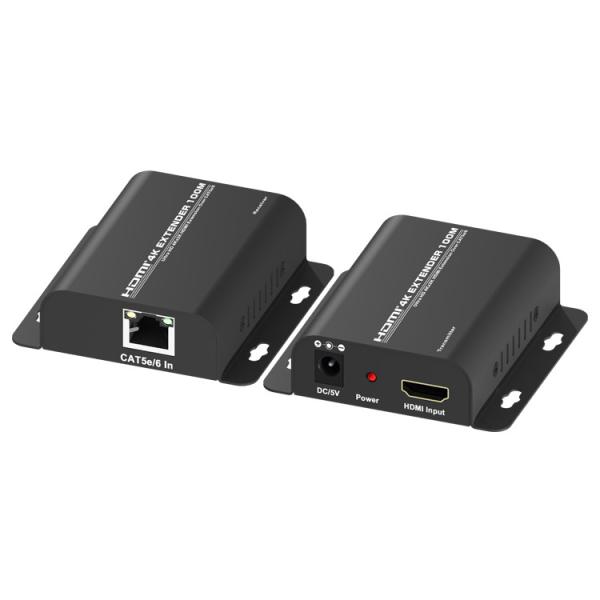

Transmitter Panel
Status --------------------------Power/HDMI Status indicator
HDMI Input -------------------------------------HDMI Input port
DC/5V--------------------------------------DC Power Input Port
EDID--------------------------------------------Resolution switch
Cat5e/6 -----------------------------Network cable output port
Receiver Panel
Status -------------------------Power/HDMI Status indicator
HDMI Output -------------------------------HDMI Output port
DC/5V-------------------------------------DC Power Input Port
Cat5e/6 ------------------------------Network cable input port
Connect and Operate
1. Connect source device with transmitter by one HDMI
cable(Max=10M).
2. Connect display device with receiver by one HDMI cable(Max=10M).
3. Connect TX with RX by one cat5e/6(Max=100M).
4. Connect the power supply to the TX and RX.
5. LED indicator:When a signal is input to work,steady blue light.
