HDMI 2.0 1 X 16 , 3D , 4K X 2K , Splitter
Introduction
HDMI Splitter is a product which can distribute HDMI signal without
loss to one or more high definition display device such as HDTV. It
can optimize your home theatre system to the best effect.
HDMI signal is distributed from source device such as DVD,
Satellite Receiver, Set-Top Box, DV Camera, A/V Receiver and other
HDMI enabled device to high definition display device such as HDTV
and HDMI Flat panel Display.
| HDMI Source Input Port | 1 |
| Display Device Output Port | 16 |
| Source Port Connector | 19 PIN HDMI |
| Display Device Port Connector | 19 PIN HDMI |
| HDCP Compliant | YES |
| Single Link Range | 3840x2160 |
| Input Video Signal | 0.5-1.0 Volts P-P |
| Input DDC Signal | 5 Volts P-P(TTL) |
| Deep Color | 48 Bit |
| HDMI Version | HDMI2.0 |
| Bandwidth | Up to 600Mhz |
| Signal Speed | Up to 18Gbps |
| The length of input cable | PS4≤10M；BLUE DVD≤10M |
| The length of output cable | ≤10M |
| The cable standard | 26AWG HDMI2.0 |
| Vertical Frequency Range | 60Hz |
| Power Consumption(max.) | 17.5Watts |
| Operation Temperature | 0℃-70℃ |
| Working Voltage | DC 5V |
| Power Adaptor | 5V 3A |
| Net Weight | 1.3Kg |
| Dimension: L*W*H(mm) | 418x90x25 |
Features
1. Compliant with HDMI2.0, HDCP2.2 and DVI 1.0.
2. Support video format up to 4k2k@60Hz with 24bit RGB/YcbCR
4:4:4/YCBCR4:4:4,
and up to 4k2k@60Hz with 12bit YCBCR 4:4:4.
3. Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio.
4. Compatible with DVI by using HDMI to DVI adapter.
5. Extend the transmission distance and improve transmission
signal.
6. Metal casing design and overall shielding without signal
interference.

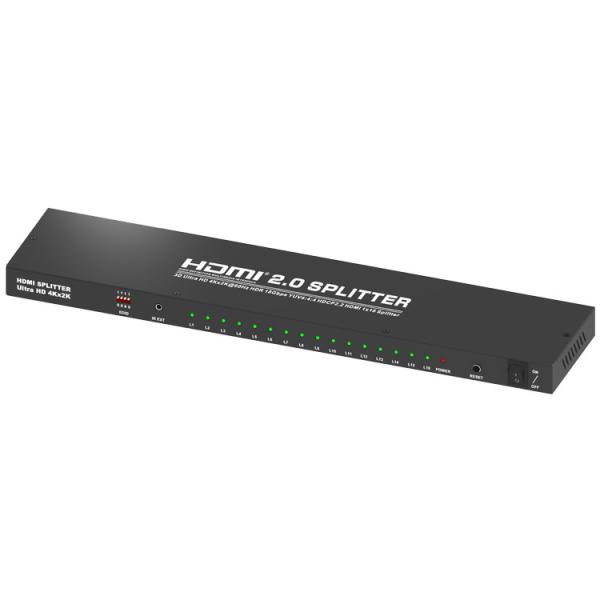

Panel Introduction
EDID --------------------------------------------EDID Setting
button
IR Ext-----------------------------------------------IR Extension
port
L1-L8-------------------------------------------HDMI Input
Indicator
Power-------------------------------------------------Power
Indicator
Reset-----------------------------------------------------Reset
button
ON/OFF-------------------------------------------------Power Switch
DC/5V------------------------------------------------Power Input
port
HDMI Output16-1------------------------------HDMI 1-16 outputs
HDMI Input------------------------------------------HDMI Input port
Connection diagram
Before installation, please make sure all devices you wish to
connect have been turned off.
1. Connect the HDMI cable between signal source and input port of
Splitter.
2. Connect the HDMI cable between output port of Splitter and HDTV.
3. Connect Splitter and power adapter.
4. Open the signal source and the power of HDTV, then it works.
EDID Selector: Select HDMI output signal format via EDID Selector.
| Number | EDID Selector | Description |
| 1 | 0000 | 1080I,Stereo-Audio-2.0 |
| 2 | 0001 | 1080I,Dolby-DTS-5.1 |
| 3 | 0010 | 1080I,HD-Audio-7.1 |
| 4 | 0011 | 1080P,Stereo-Audio-2.0 |
| 5 | 0100 | 1080P,Dolby-DTS-5.1 |
| 6 | 0101 | 1080P,HD-Audio-7.1 |
| 7 | 0110 | 3D,Stereo-Audio-2.0 |
| 8 | 0111 | 3D,Dolby-DTS-5.1 |
| 9 | 1000 | 3D,HD-Audio-7.1 |
| 10 | 1001 | 4K2K@30,Stereo-Audio-2.0 |
| 11 | 1010 | 4K2K@30,Dolby-DTS-5.1 |
| 12 | 1011 | 4K2K@30,HD-Audio-7.1 |
| 13 | 1100 | 4K2K@60,Stereo-Audio-2.0 |
| 14 | 1101 | 4K2K@60,Dolby-DTS-5.1 |
| 15 | 1110 | 4K2K@60,HD-Audio-7.1 |
| 16 | 1111 | Copy EDID From Sink |
